Description

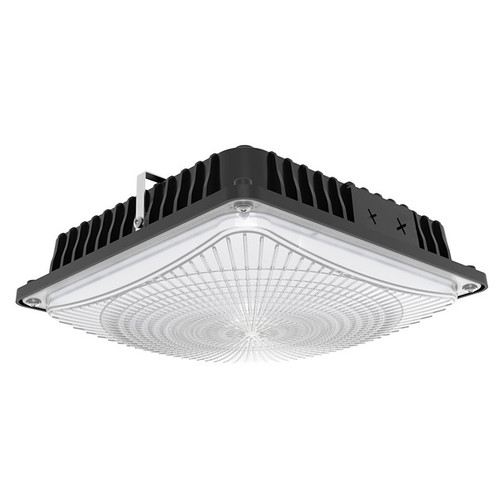

FX10SCM60SW/8CCT3/BK CCT Selectable Slim Canopy Fixture | Weather-Resistant IP65 Housing For Warehouses, Parking Garages, Offices, And Hospitals
Built for demanding indoor and semi-outdoor spaces, the NaturaLED SCM 10 (SKU 9545) delivers flexible, high-performance illumination with field-selectable wattages and color temperatures to simplify stocking and installation while reducing energy and maintenance costs.
KEY FEATURES:
- Selectable Output: Field-selectable wattages (28W, 45W, 57W) and 3CCT (3000K / 4000K / 5000K) for versatile application use.
- Rugged Construction: Die-cast aluminum housing with polycarbonate prismatic lens and corrosion-resistant powder coat finish.
- Wet-Location Ready: IP65-rated, weather-resistant design suitable for damp and dusty environments.
- Controls Compatible: 0-10V dimmable with optional microwave motion sensor and photocell accessories for energy savings.
- Reliable Performance: DLC Premium qualified with ETL/cETL listing and integrated surge protection (4kV).
APPLICATIONS:
- Ideal for warehouses and distribution centers.
- Well-suited for parking garages and covered exterior canopies.
- Great for office and commercial ceiling or wall surface mounting.
- Installation Tip: Pair with the available microwave motion sensor accessory for occupancy-based dimming and additional energy savings.
SPECIFICATIONS:
- Wattage: Selectable: 28W / 45W / 57W
- Lumens: 3,584 lm / 5,760 lm / 7,318 lm
- Color Temperature: 3CCT (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Surge Protection: 4kV
- Beam Angle: 160°
- IP Rating: IP65
- Material: Die Cast Aluminum
- Lens: Polycarbonate Prismatic Lens
- Weight: 5.51 lbs
- Dimensions: 9.60 × 9.60 × 3.20 in
- Accessories: Microwave motion sensor, frosted/drop lens, photocell, emergency driver, beauty plate, wire guard (sold separately)
- Warranty: 5-Year Limited Warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, ETL/cETL Listed
- Operating Temperature: -40°F to 122°F
- Package: Standard pack quantity: 1 per master carton
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
