Description

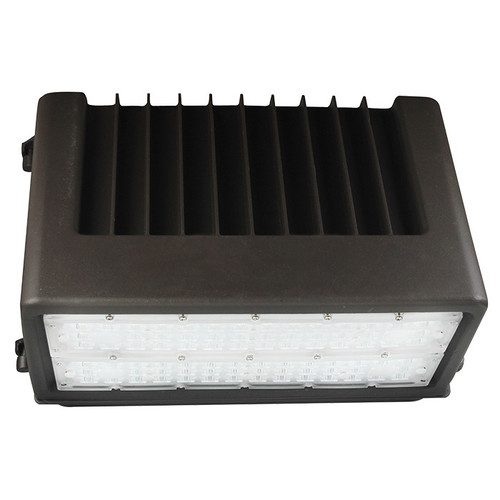

FXCWP120SW/CCT3/BZ-PHO Exterior Cutoff Wall Pack | IP65 Wet-Rated Bronze Fixture With Built-In Photocell And 0-10V Dimming
Purpose-built for perimeter, security, and pathway lighting, this selectable-wattage wall pack delivers dependable outdoor illumination while reducing maintenance and energy costs. The rugged die-cast aluminum housing and IP65 rating ensure long-term performance in exposed environments, and the factory-included photocell enables simple dusk-to-dawn operation.
KEY FEATURES:
- Selectable Wattages: Field-selectable output (80W / 100W / 126W) to tailor light levels and energy use on-site.
- CCT Flexibility: 3CCT selectable (3000K / 4000K / 5000K) for optimal color tuning across installations.
- Durable Outdoor Construction: Die-cast aluminum housing with corrosion-resistant powder coat in Bronze and polycarbonate/borosilicate lens for long life.
- Integrated Controls: Built-in photocell included for automatic night operation; 0-10V dimming capable for zone control.
- Robust Electrical Protection: 6KV surge protection and 120-277V universal driver for reliable performance.
APPLICATIONS:
- Ideal for parking lots, building perimeters, and entryway security lighting.
- Well suited to pathways, loading docks, and carports requiring consistent, glare-controlled illumination.
- Excellent for retrofit projects replacing HID fixtures up to 575-750W equivalent.
- Installation Tip: Mount at least four feet above the ground and adjust selectable wattage/CCT to balance coverage and glare.
SPECIFICATIONS:
- Wattage: Selectable — 80W, 100W, 126W
- Lumens: 10,388 (80W), 12,985 (100W), 16,464 (126W)
- Equiv. Wattage: 575-750W
- Color Temperature: 3CCT (3000K / 4000K / 5000K)
- CRI: >70
- Voltage: 120-277V
- Surge Protection: 6KV
- Dimming: 0-10V
- IP Rating: IP65
- Lens: Borosilicate Glass / Polycarbonate Lens
- Material / Finish: Die Cast Aluminum, Bronze powder coat
- Weight: 10.56 lbs
- Dimensions: 9.60 × 14.20 × 9.25 in
- Rated Life: 50,000 hours
- Warranty: 5-year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, UL/cUL Listed
- Location Rating: IP65 Wet‑Rated for exterior use
- Included Accessory: Built-in Photocell (PHO)
