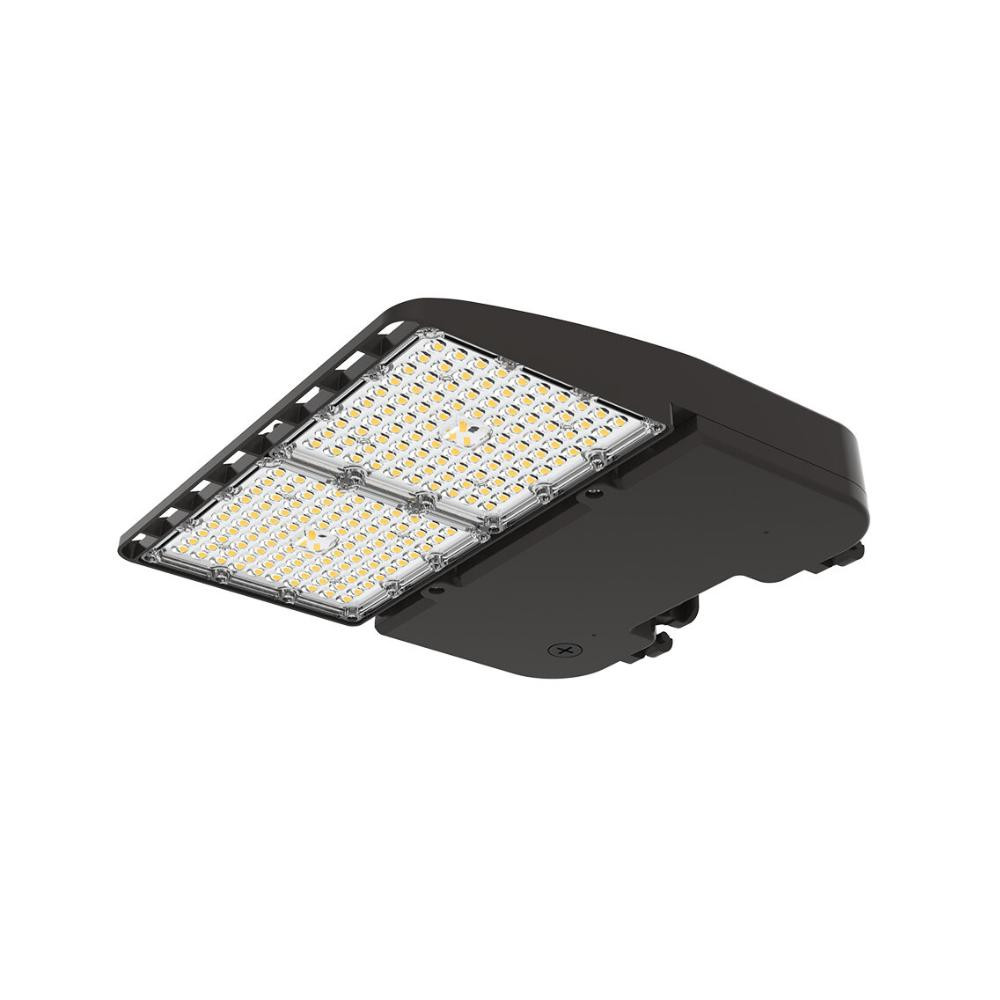

FXSAL150/840/BZ/T3 High-Efficiency Outdoor Area Luminaire For Parking And Roadway Lighting | Cool White (4000 K) | IP66 Waterproof
Engineered to reduce maintenance and energy costs for commercial exteriors, this PR area light provides high-output, uniform illumination for parking lots and roadways while delivering rugged, weatherproof performance in harsh environments.
KEY FEATURES:
- High Output: Produces 21,000 lumens at 140 lm/W to maximize site illumination while lowering fixture count.
- Durable Weatherproof Design: IP66 rated housing resists dust and heavy washdown for long-term outdoor reliability.
- Wide Photometry: Type III beam distribution yields broad roadway and lot coverage with even light distribution.
- Electrical Protection: Built-in 10KV surge protection and 0-10V dimming support improve system resilience and control.
- Versatile Mounting: Multiple mount options (pole, slip fitter, yoke, wall) simplify retrofit and new-install applications.
APPLICATIONS:
- Parking lots and garages for commercial and municipal sites.
- Roadway, perimeter, and campus lighting requiring uniform coverage.
- Industrial yards and outdoor work areas needing durable fixtures.
- Installation Tip: Mount between 10–25 ft for optimal Type III distribution and spacing.
SPECIFICATIONS:
- Wattage: 150 W
- Lumens: 21,000
- Efficacy: 140 lm/w
- Color Temperature: 4000K
- CRI: >80
- Beam Angle: Type III
- IP Rating: IP66
- Input Voltage: 120~277 V
- Voltage Frequency: 50/60HZ
- Surge Protect Level: 10KV
- Dimmable: 0 - 10V
- Power Factor: >0.9
- Input Current: 1.36 A
- THD: ≤ 20%
- AUX (12V) Line: Yes
- Rated Life: 50,000 hrs.
- Operating Temperature (°F): -40~140
- Storage Temperature (°F): -40 ~ 122
- Length: 14.2'' (360mm)
- Width: 12.01'' (307mm)
- Height: 2.6'' (66mm)
- EPA: 0.212 ft² (@ 0 deg)
- Weight: 8 lbs
- Mounting: Pole Mount / Slip Fitter / Yoke Mount / Wall Mount
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL, cETL
- DLC: V5.1 Premium
- Photometric/Data: LM79 and IES file available
- Compliance: LM80, RoHS
