Description

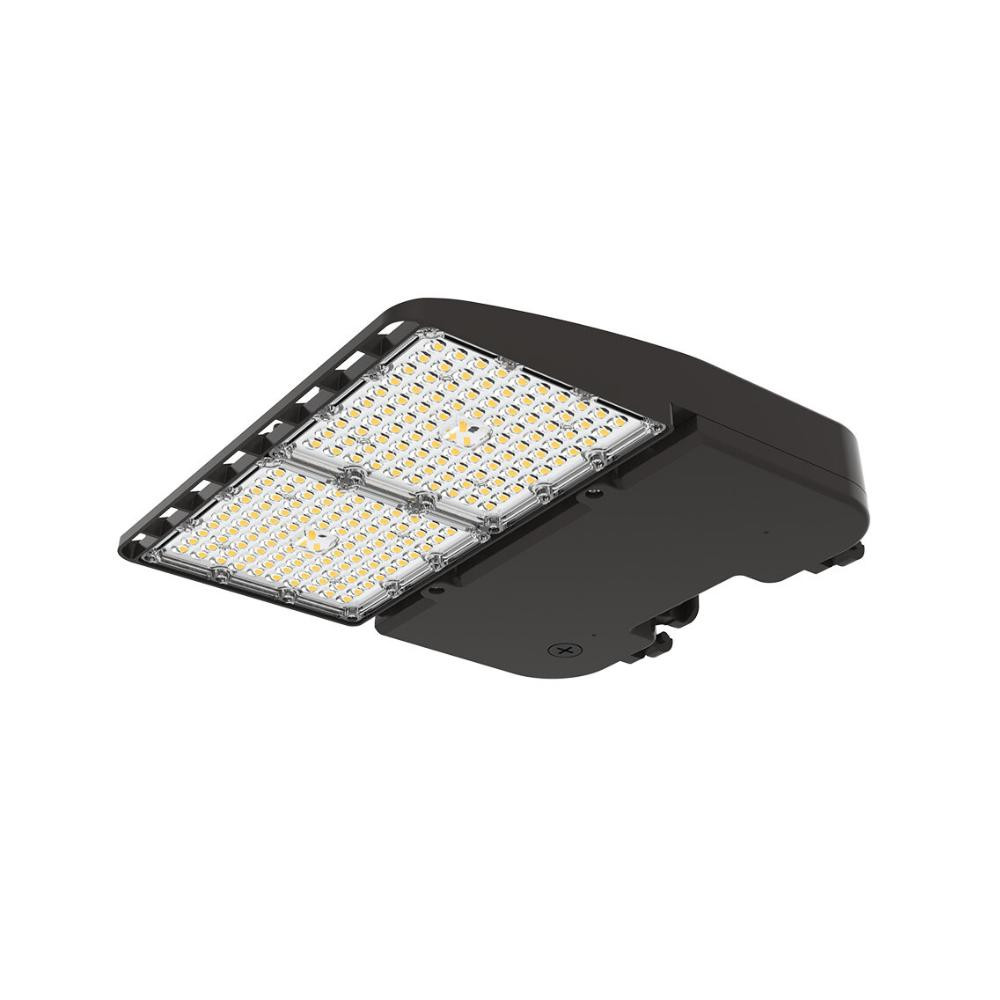

FXSAL320/840/BZ/T3 High-Efficiency Bronze Area Luminaire With Type III Lens For Road & Perimeter | Cool White (4000 K) | IP66
Optimize outdoor illumination and reduce maintenance cycles with this high-output area fixture that delivers consistent Cool White light and rugged, IP66-rated protection for demanding exterior environments.
KEY FEATURES:
- Versatile Mounting: Multiple mount options (Pole, Slip Fitter, Yoke, Wall) streamline retrofits and new installs.
- Robust Outdoor Performance: IP66 housing and bronze RAL# 8019 finish resist weather and corrosion for long service life.
- Advanced Optics: Type III beam with Type IV lens provides wide, uniform roadway and perimeter coverage.
- Control Ready: 0-10V dimming and AUX 12V line support integration with lighting controls and sensors.
- High Output Efficiency: Produces 44,800 lumens at 140 lm/W to minimize fixture counts and energy use.
APPLICATIONS:
- Parking lots and garage perimeter lighting.
- Roadway, pathway, and campus security illumination.
- Commercial site and facility exterior lighting.
- Tip: Use slip-fitter or pole mounts to optimize aim for uniform site coverage.
SPECIFICATIONS:
- Wattage: 320W
- Lumens: 44,800
- Efficacy: 140 lm/W
- Color Temperature: 4000K
- CRI: >80
- Beam Angle: Type III
- Lens: Type IV lens
- Input Voltage: 120~277
- Voltage Frequency: 50/60Hz
- Input Current: 2.91 A
- Dimmable: 0-10V
- Surge Protect Level: 10KV
- Power Factor: >0.9
- THD: ≤ 20%
- IP Rating: IP66
- Operating Temperature: -40 ~ 140 °F
- Storage Temperature: -40 ~ 122 °F
- Rated Life: 50,000 hrs.
- Warranty: 5 Years
- Weight: 15.5 lbs
- Mounting Options: Pole Mount / Slip Fitter / Yoke Mount / Wall Mount
- Housing Color: Bronze (RAL# 8019)
- Replacement: 1000W-1500W
- AUX (12V) Line: Yes
- LM79: YES
- IES File: YES
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL, cETL, DLC V5.1 Premium
- Listings: JA8, LM80, FCC, RoHs (as noted on spec)
