Description

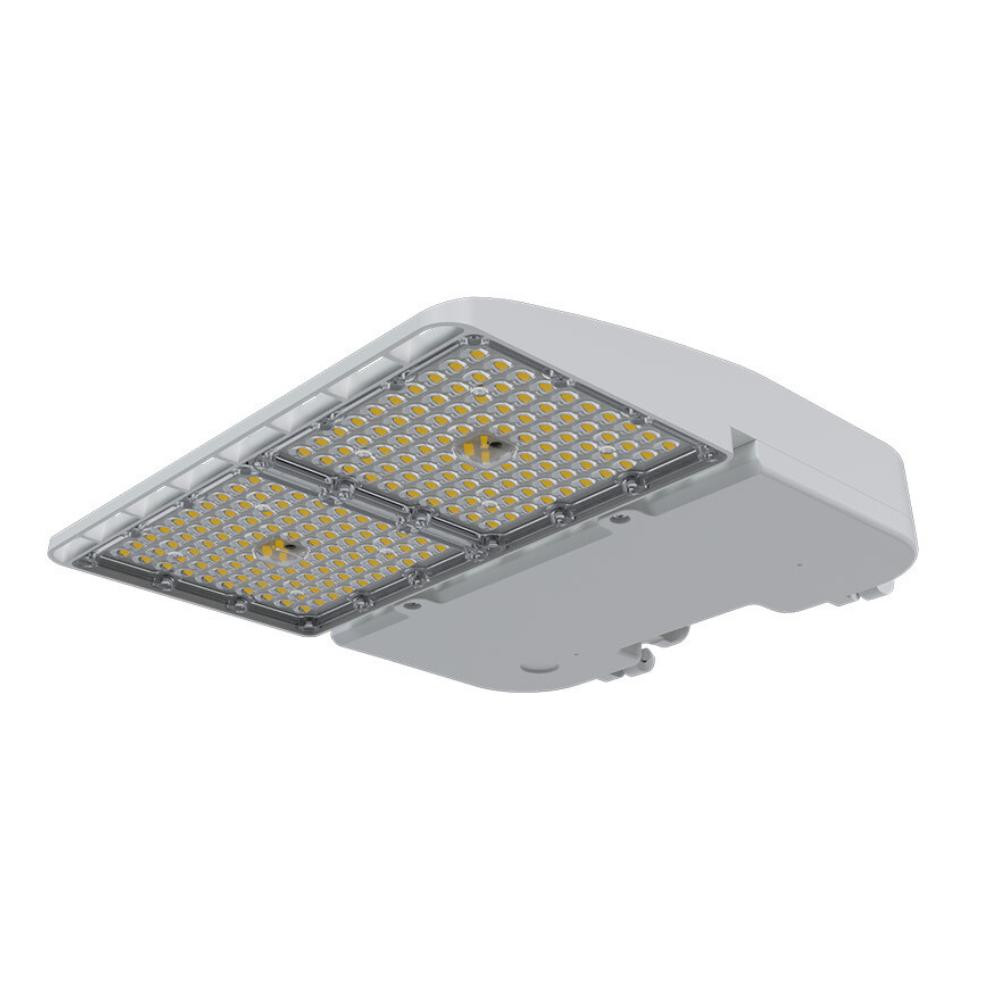

FXSAL75SW/8CCT3/WH/T3 Durable Slim Area Light For Streets And Parks | CCT Selectable | 75W High-Output With IP66 Protection
Designed for quick upgrades to outdoor area lighting, this slim area luminaire delivers high-output, energy-efficient illumination and reduces maintenance cycles with long life and robust weather protection.
KEY FEATURES:
- CCT Selectable: Switch between 3000K, 4000K, and 5000K on-site to match project needs without stocking multiple SKUs.
- Durable Outdoor Rating: IP66 housing protects electronics from water and dust for reliable street and parking-lot performance.
- Multiple Mounting Options: Supplied for pole mount, slip fitter, yoke, and wall mount installations to simplify retrofits.
- Energy Efficient: High efficacy (140 lm/W) with lumen outputs up to 10,500 lm to lower energy and maintenance costs.
- Controls Ready: 0-10V dimming and 12V AUX line for integration with site lighting controls and sensors.
APPLICATIONS:
- Ideal for parking lots, campus grounds, and perimeter roadways.
- Well suited for street lighting, pathways, and commercial exterior areas.
- Great for municipal, retail center, and industrial site illumination needs.
- Usage Tip: Use the slip fitter mount for precise aiming and optimal uniformity.
SPECIFICATIONS:
- Wattage: 75/50/25
- Lumens: 10500/7000/3500
- Efficacy: 140 lm/w
- Color Temperature: selectable 3000/4000/5000K
- CRI: >80
- Beam Angle: Type III
- Input Voltage: 120~277
- Voltage Frequency: 50/60HZ
- Input Current (A): 0.68
- Dimmable: 0 - 10V
- Surge Protect Level: 10KV
- Power Factor: >0.9
- THD: ≤ 20%
- AUX (12V) Line: Yes
- IP Rating: IP66
- Rated Life: 50000 hrs.
- Warranty: 5 Years
- Mounting: Pole Mount / Slip Fitter / Yoke Mount / Wall Mount
- Housing Color: White (RAL# 9003)
- Dimensions (L x W x H): 14.2'' (360mm) x 12.01'' (307mm) x 2.6'' (66mm)
- Weight: 8 lbs
- EPA: 0.212 ft² (@ 0 deg)
- Certifications: ETL, cETL, LM79, LM80, JA8, FCC, DLC V5.1 Premium
- Replacement Wattage Range: 100W-400W
- Storage Temperature: -40 ~ 122
- Operating Temperature: -40~140
