Description

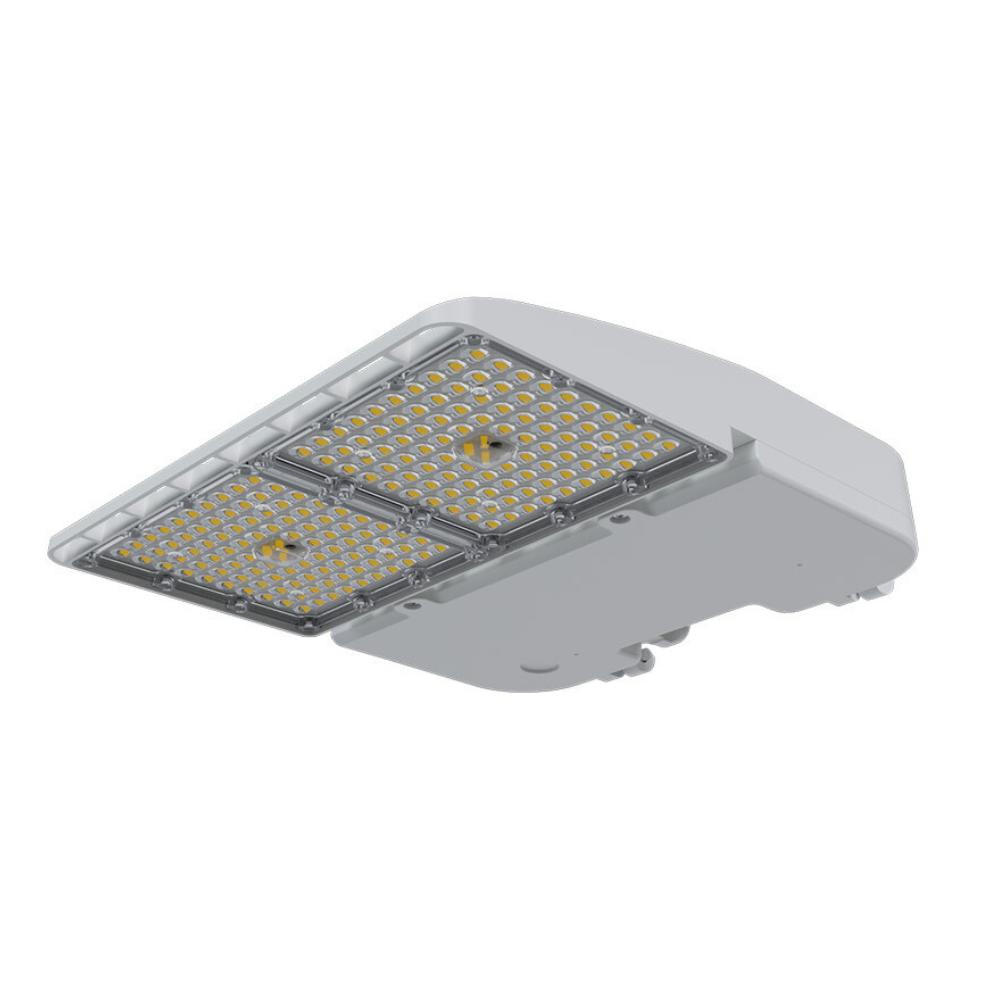

FXSAL100/840/WH/T3 Durable 100W Area Light With IP66 Wet Rating For Pole, Slip-Fitter, Yoke Or Wall Mount | Cool White (4000 K)
Engineered for quick installation and low maintenance in commercial outdoor settings, this slim area light delivers high-output cool white illumination while minimizing energy use and service calls through robust IP66 protection and a long rated life.
KEY FEATURES:
- High Output: Produces 14,000 lm at 100W for bright area illumination with 140 lm/W efficacy.
- Durable Construction: IP66 wet-location rating and white powder-coated housing (RAL# 9003) stand up to harsh outdoor conditions.
- Flexible Mounting: Designed for pole, slip-fitter, yoke or wall mounting to simplify retrofit and new-install projects.
- Wide Voltage Range: Universal 120~277V input with 10KV surge protection for reliable performance.
- Control Ready: 0-10V dimming and AUX 12V line support adaptable lighting control strategies.
APPLICATIONS:
- Ideal for parking lots, drive aisles, and outdoor commercial areas.
- Well suited for perimeter lighting at retail centers and municipal facilities.
- Great for pathway and walkway illumination around campuses and industrial sites.
- Tip: Install at 10-20 ft mounting height for optimal Type III distribution.
SPECIFICATIONS:
- Wattage: 100
- Lumen (lm): 14,000
- Efficacy: 140 lm/w
- CRI: >80
- Color Temperature: 4000K
- Beam Angle: Type III
- Replacement Wattage (W): 400W
- Input Voltage: 120~277
- Dimmable: 0 - 10V
- Power Factor: >0.9
- Surge Protect Level: 10KV
- Input Current: 0.91
- AUX (12V) Line: Yes
- THD: ≤ 20%
- Rated Life: 50000 hrs.
- Warranty: 5 Years
- IP Rating: IP66
- Weight: 8 lbs
- Dimensions: 14.2'' x 12.01'' x 2.6'' (360 x 307 x 66 mm)
- Mounting: Pole Mount / Slip Fitter / Yoke Mount / Wall Mount
- Housing Color: White (RAL# 9003)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL, cETL
- DLC: V5.1 Premium
- Photometric Files: LM79, LM80, IES File Available
