Description

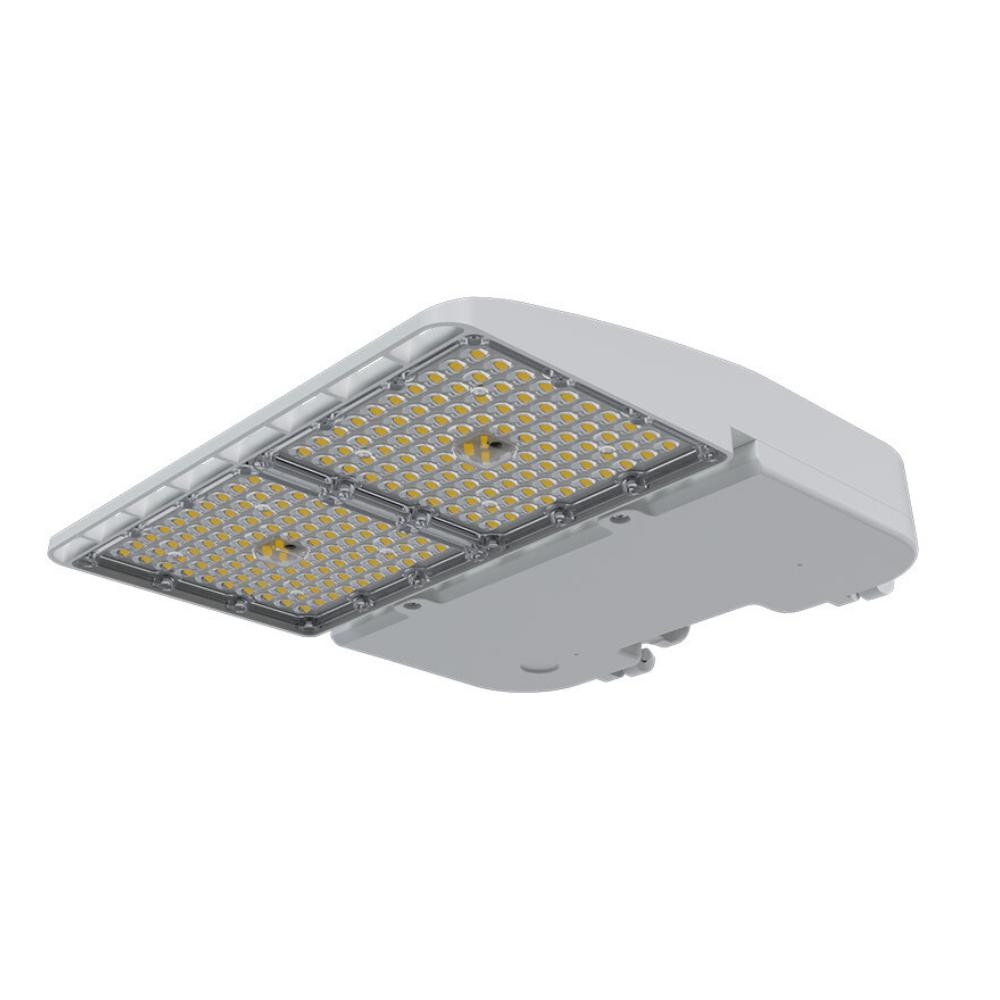

FXSAL100/850/WH/T3 Low-Profile 100W Outdoor Area Luminaire | Daylight (5000 K) | IP66 Wet Location Slip-Fitter & Yoke Mounts
Designed for fast installation and dependable outdoor performance, this slim area fixture delivers high-output Daylight illumination while reducing energy use and maintenance for parking lots, walkways, and perimeter security applications.
KEY FEATURES:
- Quick Install: Multiple mounting options (slip-fitter, yoke, pole, wall) simplify retrofit and new-install workflows.
- High Output: Produces 14,000 lumens at an efficient 140 lm/W for bright, uniform coverage.
- Energy Efficient: 100W LED replaces a 400W HID equivalent to cut energy use significantly.
- Durable Outdoor Design: IP66-rated housing and robust surge protection (10KV) for long-term reliability.
- Controls Ready: 0-10V dimming and auxiliary 12V line support integrated control strategies.
APPLICATIONS:
- Ideal for parking lots and municipal lot lighting.
- Perfect for campus pathways, courtyards, and pedestrian areas.
- Well suited to industrial yards and perimeter/security illumination.
- Usage Tip: Pair with a photocell or timed controls to maximize energy savings and runtime.
SPECIFICATIONS:
- Wattage: 100
- Lumens: 14,000
- Efficacy: 140 lm/w
- Color Temperature: 5000K
- CRI: >80
- Beam Angle: Type III
- Input Voltage: 120~277
- Voltage Frequency: 50/60HZ
- Dimmable: 0 - 10V
- Surge Protect Level: 10KV
- Power Factor: >0.9
- THD: ≤ 20%
- AUX (12V) Line: Yes
- IP Rating: IP66
- Length: 14.2" (360mm)
- Width: 12.01" (307mm)
- Height: 2.6" (66mm)
- Weight: 8 lbs
- Rated Life: 50000 hrs.
- Warranty: 5 Years
- Mounting: Pole Mount / Slip Fitter / Yoke Mount / Wall Mount
- Housing Color: White (RAL# 9003)
- Replacement Wattage: 400W
- Input Current: 0.91 A
- Operating Temperature: -40~140
- Storage Temperature: -40 ~ 122
