Description

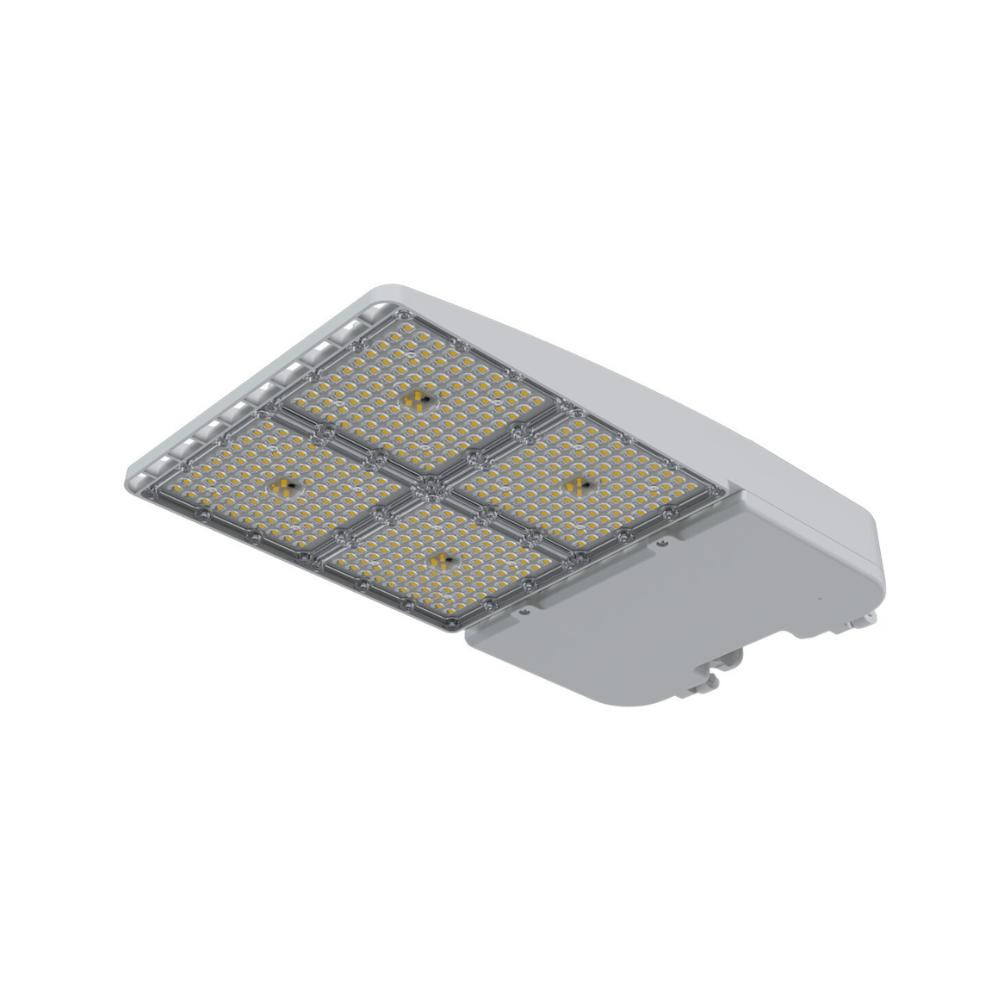

FXSAL320/850/WH/T3 High-Efficiency Slim LED Area Luminaire For Pole Slip-Fitter And Wall Mounts | Daylight | High Output
Engineered for fast installation and long-term energy savings, this slim area luminaire delivers high-output illumination for parking areas, roadways, and perimeter spaces while minimizing maintenance and reducing energy costs.
KEY FEATURES:
- High Output: 44,800 lumens at 140 lm/W delivers powerful replacement for 1000W–1500W HID fixtures.
- Rugged Weather Rating: IP66 housing protects against dust and powerful water jets for reliable outdoor performance.
- Multiple Mounting Options: Designed for Pole Mount, Slip-Fitter, Yoke, or Wall Mount installations for flexible site use.
- Driver & Control: 0–10V dimming and AUX 12V line support for adaptive lighting control.
- Surge Protection: Built-in 10KV surge protection enhances durability in outdoor electrical environments.
APPLICATIONS:
- Ideal for parking lots and site lighting installations.
- Well-suited for roadways, streets, and roadway-adjacent pathways.
- Appropriate for industrial yards, perimeters, and large outdoor campuses.
- Tip: Use the slip-fitter mount for precise beam aiming and optimal Type III distribution.
SPECIFICATIONS:
- Wattage: 320W
- Lumens: 44,800
- Efficacy: 140 lm/w
- Color Temperature: 5000K
- CRI: >80
- Beam Angle: Type III
- Input Voltage: 120~277V
- Input Current: 2.91A
- Dimmable: 0 - 10V
- Power Factor: >0.9
- Surge Protect Level: 10KV
- THD: <= 20%
- AUX (12V) Line: Yes
- IP Rating: IP66
- Rated Life: 50,000 hrs
- Warranty: 5 Years
- Dimensions (L x W x H): 21.65" (550mm) x 12.01" (307mm) x 2.67" (68mm)
- Weight: 15.5 lbs
- Replacement: 1000W-1500W HID
- Certifications: ETL, cETL, DLC V5.1 Premium, LM79, LM80, JA8
