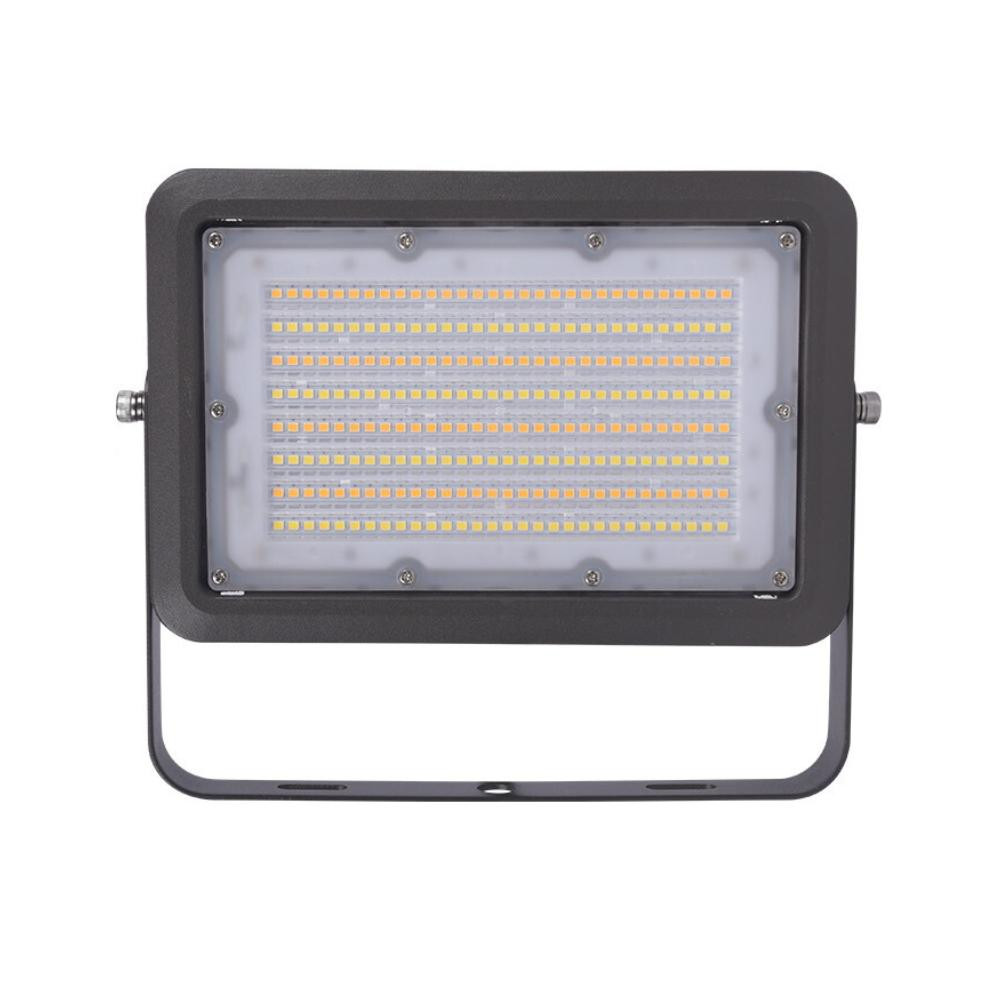

FXFDL15/77/CCT3/BZ-YK Bronze Yoke-Mount Outdoor Flood | CCT Selectable | 0-10V Dimmable For Security Lighting
Designed for dependable outdoor illumination with minimal upkeep, the FXFDL15/77/CCT3/BZ-YK flood fixture delivers selectable white light, high efficacy, and rugged IP65 protection to reduce maintenance and energy costs in commercial exteriors.
KEY FEATURES:
- Robust Outdoor Design: IP65 wet-rated bronze housing with yoke mount for secure exterior installation.
- Flexible Color Options: Field-selectable 3000K/4000K/5000K CCT for adaptable ambiance and task lighting.
- High Efficacy Output: Produces 1,900 lumens with 127 lm/W efficacy for efficient site illumination.
- Smooth Dimming: 0-10V dimmable driver enables precise light-level control and energy savings.
- Long-Life Reliability: Rated for 50,000 hours and backed by a 5-year warranty to lower lifecycle costs.
APPLICATIONS:
- Parking lots and perimeter security lighting.
- Building facades, signage, and architectural accenting.
- Pathways, loading docks, and outdoor work areas.
- Usage Tip: Use 0-10V dimming to reduce nighttime output and save energy while maintaining safety.
SPECIFICATIONS:
- Model Number: FXFDL15/77/CCT3/BZ-YK
- Item #: 9652
- Wattage: 15W
- Tested Wattage: 14.8W
- Lumens: 1,900
- Efficacy: 127 lm/W
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 70
- Input Voltage: 120 ~ 277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.37 A
- Dimmable: 0-10V
- Power Factor: ≥ 0.9
- THD: ≤ 20%
- Surge Protect Level: 4KV
- Operating Temperature: -40 ~ 158 °F
- Storage Temperature: -40 ~ 113 °F
- IP Rating: IP65
- Rated Life: 50,000 hours
- Warranty: 5 years
- Mounting: Yoke (Mount-FDL Knuckle Bronze)
- Housing Color: Bronze
- Dimensions (W×H×D): 4.72" × 4.21" × 1.65"
- Certifications: UL/ETL, cULus, CEC, LM79, IES File, LM80, FCC, DLC V5.1 Premium, RoHs, JA8
