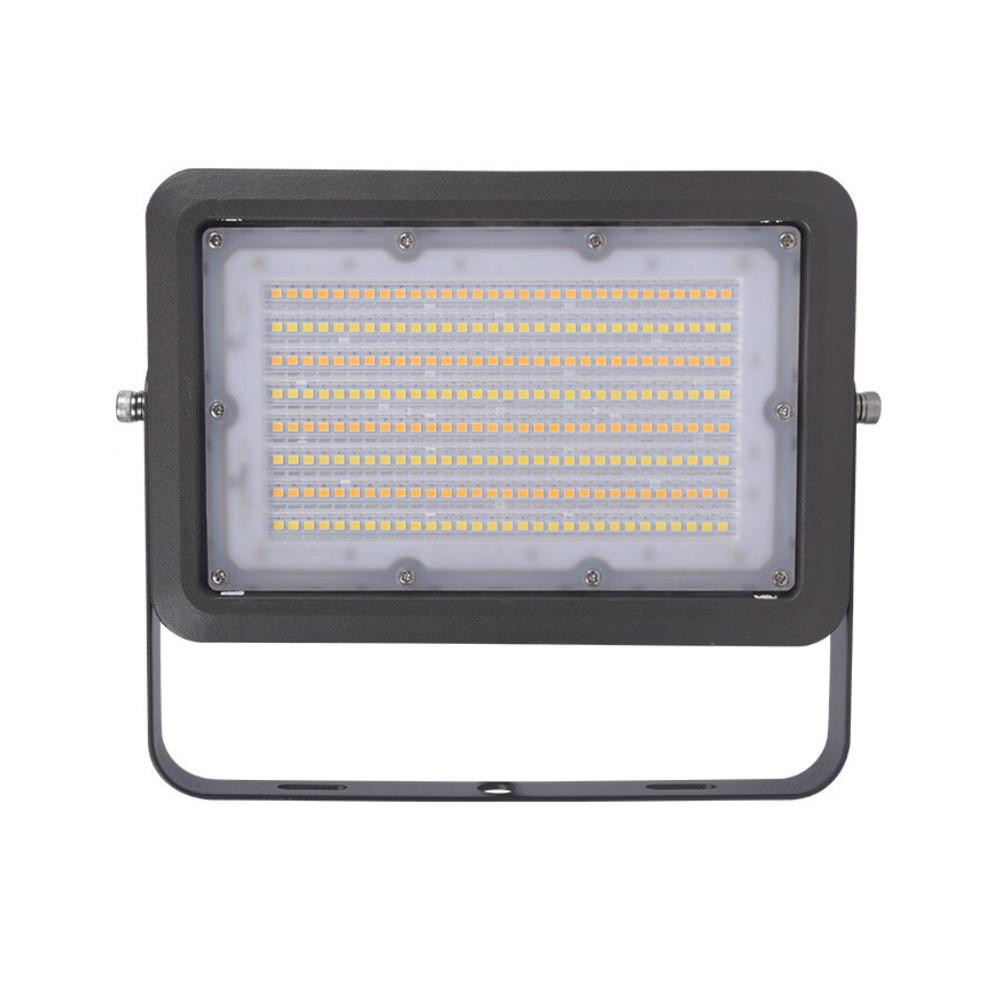

FXFDL30/77/CCT3/BZ-YK Weatherproof Bronze Knuckle-Mount LED Flood For Outdoor Security | CCT Selectable | High Efficacy Lighting
Designed for fast replacement of legacy outdoor luminaires, this knuckle-mount flood delivers high-output, adjustable color light and durable weatherproof performance to reduce maintenance and improve security illumination.
KEY FEATURES:
- Durable Weatherproof Design: IP65-rated bronze housing stands up to outdoor environments for reliable long-term operation.
- CCT Selectable: Field-selectable 3000/4000/5000K options allow on-site tuning for application-specific ambiance.
- High Efficacy Output: 4,100 lumens at 137 lm/W delivers bright illumination with lower energy use.
- Robust Electrical Protection: 4KV surge protection and wide 120~277V input for stable performance across common supply ranges.
- Long-Life & Warranty: 50,000 hour rated life backed by a 5-year limited warranty for reduced lifecycle costs.
- 0-10V Dimming: Integrated 0-10V dimmable driver for smooth lumen control and energy savings.
APPLICATIONS:
- Ideal for building perimeters and security lighting.
- Well suited for parking lots, loading docks, and exterior signage illumination.
- Perfect for sports courts, campuses, and commercial site lighting requiring durable fixtures.
- Usage Tip: Mount with a knuckle aiming angle between 30°–60° for broad, even coverage.
SPECIFICATIONS:
- Wattage: 30W
- Tested Wattage: 29.94W
- Lumens: 4,100
- Efficacy: 137 lm/W
- Color Temperature: 3000/4000/5000K (CCT Selectable)
- CRI: 70
- Beam Angle: 75-150°
- Input Voltage: 120 ~277V
- Voltage Frequency: 50/60Hz
- Dimmable: 0-10V
- Surge Protect Level: 4KV
- Input Current: 0.46A
- Power Factor: ≥ 0.9
- THD: ≤ 20%
- Operating Temperature: -40 ~ 158°F
- Storage Temperature: -40 ~ 113°F
- IP Rating: IP65
- Mounting: Knuckle (Bronze)
- Dimensions (W x H x D): 6.3" (160 mm) x 5.51" (140 mm) x 1.65" (42 mm)
- Rated Life: 50,000 hrs.
- Warranty: 5 years
