Description

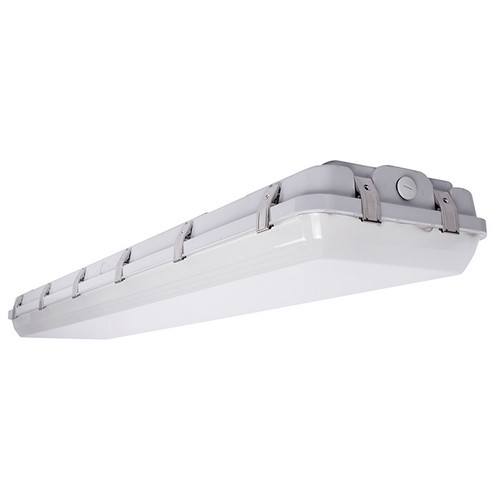

VTL11/200S/48FR/8C3/347 4‑Ft Vapor‑Tight Linear Fixture | CCT Selectable for Parking, Tunnels, Industrial Spaces
Designed for demanding commercial and industrial environments, the VTL11/200S/48FR/8C3/347 provides field-selectable wattages and color temperatures to simplify stocking and on-site tuning while reducing energy and maintenance costs. Its rugged IP66/NEMA 4X construction and DLC Premium performance make it ideal for parking garages, tunnels, warehouses, and other wet or harsh locations.
KEY FEATURES:
- Selectable Wattage: Field-selectable 120W, 160W, or 200W to match application needs.
- Selectable Color Temp: 3CCT (3500/4000/5000K) for on-site tuning of light quality.
- Durable, Wet-Rated: IP66 / NEMA 4X polycarbonate housing with silicone perimeter gasket for harsh conditions.
- High Output: Up to 32,000 lumens with DLC Premium qualification and CRI >80.
- Flexible Power & Controls: Universal 120-347V input and 0-10V dimming compatibility.
- Protection & Longevity: 6KV surge protection option and 50,000 hour rated life with a 5-year warranty.
APPLICATIONS:
- Parking garages and exterior covered areas.
- Tunnels, stairwells, and maintenance corridors.
- Warehouses, storage facilities, and industrial buildings.
- Installation Tip: Use the field-select switches at install to optimize lumen output and CCT for specific tasks.
SPECIFICATIONS:
- Wattage: 120 / 160 / 200W
- Lumens: 19,200 / 25,600 / 32,000
- Color Temperature: CCT Selectable (3500K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-347V
- Dimmable: 0-10V
- Beam Angle: 120°
- IP Rating: IP66 / NEMA 4X
- Listings: DLC Premium, ETL, ETL Sanitation
- Surge Protection: 6KV
- Rated Life: 50,000 hours
- Warranty: 5-Year
- Length: 4-ft
- Weight: 13.9 lbs
- Dimensions: 49 × 10.50 × 4.50 in
- Package Quantity: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed, ETL Sanitation
- DLC Status: DLC Premium
- Optional Accessories: Microwave motion sensor, emergency driver, remote programmer (ordered separately)
