Description

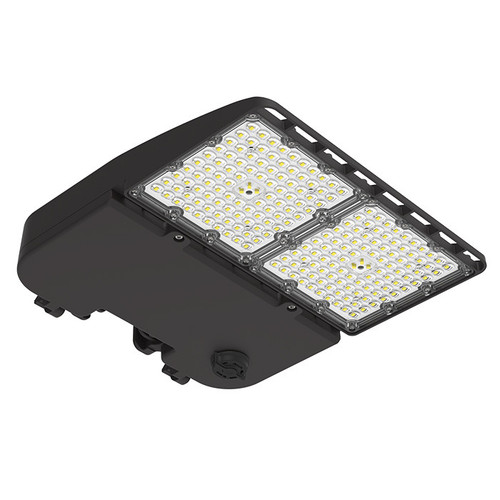

SAL/150S/T3/8C3/BK-Z10 Slim Area Light | CCT Selectable Outdoor Wall/Pole Luminaire With Z10 Sensor For Parking & Paths
Designed for parking lots, perimeter, and pathway lighting, the NaturaLED SAL/150S slim area light combines field-selectable wattage and CCT with a Z10 sensor receptacle to simplify installs, reduce energy use, and cut maintenance costs compared to legacy HID fixtures.
KEY FEATURES:
- Selectable Wattage: Field-selectable 90W, 120W, or 150W to match site lighting needs and reduce inventory.
- CCT Selectable: 3CCT (3000K / 4000K / 5000K) for tailored color appearance on installation.
- Z10 Sensor Ready: Pre-installed Z10 receptacle for twist-lock motion or photocell sensors to enable smart controls.
- Durable Outdoor Build: Die-cast aluminum housing with epoxy powder coat finish and UV-resistant polycarbonate lens for long-term reliability.
- Robust Performance: IP66 rated for harsh environments and compatible with 20KV surge protection.
- Controls: 0-10V dimmable for integration with lighting controls and energy management.
- High Output Options: Lumen outputs of 12,649 / 16,800 / 21,118 corresponding to 90W / 120W / 150W settings.
APPLICATIONS:
- Ideal for parking lots and garage perimeters.
- Excellent for perimeter and security lighting around commercial properties.
- Well suited for pathways, sidewalks, and building flood illumination.
- Usage Tip: Pair with Z10 motion/photocell sensors to maximize energy savings and reduce run-time during low-traffic periods.
SPECIFICATIONS:
- Wattage: 90W / 120W / 150W (field selectable)
- Lumens: 12,649 lm (90W) • 16,800 lm (120W) • 21,118 lm (150W)
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Surge Protection: 20KV compatible
- Lens / Distribution: Type III (Type IV and V available as accessories)
- Material & Finish: Die-cast aluminum housing, epoxy powder coat (Black)
- IP Rating: IP66
- Rated Life: 50,000 hours
- Weight: 8.00 lbs
- Dimensions: 14.2 × 12.01 × 2.60 in
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, ETL/cETL Listed
- Location Rating: IP66 Rated for outdoor use
- Warranty: 7-Year Limited Warranty (extended 10-year available)
- Accessories: Multiple mounts (pole, slip fitter, wall, yoke), sensors, photocells, surge protection, and glare shields available separately.
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
