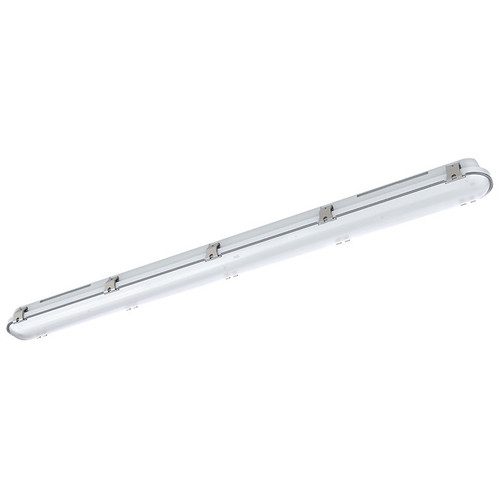

VTL4/50S/48FR/8C3 Commercial 4ft Vapor Tight Linear Fixture | CCT Selectable (3500/4000/5000K) For Garages & Tunnels
Built to replace fluorescent strip fixtures in demanding commercial and industrial spaces, the NaturaLED VTL 4 (9710) delivers flexible, maintenance‑reducing illumination with field‑selectable wattages and color temperatures. Its IP65/NEMA 4X housing, lightweight construction, and stainless steel hasps make it ideal for wet, dusty, or corrosive environments while cutting energy use by up to 65% versus legacy lamps.
KEY FEATURES:
- Selectable Output: Field‑selectable wattages (30/40/50W) and CCT (3500/4000/5000K) for tailored light levels and color without stocking multiple SKUs.
- Durable, Wet‑Rated Construction: IP65 rating with NEMA 4X protection and stainless steel hardware for reliable operation in parking garages, car washes, and tunnels.
- Energy & Maintenance Savings: Replaces 2×32W T8 fixtures and reduces energy use up to 65% while offering a 50,000 hour rated life.
- Controls Ready: 0‑10V dimmable and compatible with optional microwave motion sensor and remote programmer for added energy control.
- Robust Electrical: 120‑277V operation with 4KV surge protection and optional emergency driver accessories available.
- Easy Installation: Lighter weight housing and included mounting brackets simplify retrofit and new‑construction installs.
APPLICATIONS:
- Parking garages and ramp lighting.
- Tunnels, car washes, and industrial corridors.
- Education and healthcare facilities for utility and service areas.
- Tip: Add the remote programmable motion sensor or emergency driver accessory for code compliance and additional energy savings.
SPECIFICATIONS:
- Wattage: Selectable 30W / 40W / 50W
- Lumens: 4,350 lm (30W) / 5,800 lm (40W) / 7,250 lm (50W)
- Color Temperature: CCT Selectable (3500K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Beam Angle: 120°
- Length: 4‑ft (48" Frosted Lens)
- IP Rating: IP65 / NEMA 4X
- Rated Life: 50,000 hours
- Dimensions: 46.85 × 3.81 × 3.02 in
- Warranty: 5‑Year Limited Warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Standard, ETL Listed, ETL Sanitation Rated
- Surge Protection: 4KV (internal)
- Accessories (Ordered Separately): Microwave Motion Sensor, Remote Programmer, Emergency Driver Kits, Angle Mount Bracket
- Case Pack: 1 pc
