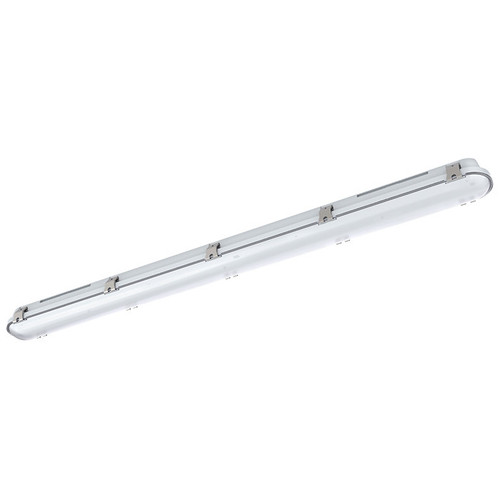

VTL4/50S/48PG/8C3 4-Foot IP65 Vapor Tight Linear Fixture | CCT Selectable For Parking Garages, Tunnels, And Industrial Spaces
Engineered for demanding commercial and industrial environments, this 4-foot VitaLED vapor tight fixture delivers selectable wattages and color temperatures to simplify stocking and installation. The IP65-rated, lightweight housing provides reliable, low-maintenance illumination for parking structures, tunnels, stairwells, and washdown areas while reducing energy use compared to fluorescent strip fixtures.
KEY FEATURES:
- Selectable Wattage: Field-selectable 30W / 40W / 50W for flexible lumen output and energy management.
- Selectable Color Temp: 3500K / 4000K / 5000K CCT selectable to match application needs.
- Durable, Wet-Rated Design: IP65 rating with NEMA 4X construction for protection in damp, dusty, and washdown environments.
- Wide Voltage Range: 120-277V input and 0-10V dimming for easy integration with existing controls.
- High Performance: Up to 6,000 lumens at 50W with CRI >80 and a 120° beam angle for broad area coverage.
APPLICATIONS:
- Ideal for parking garages and covered exterior canopies where wet-rated, long-life lighting is required.
- Perfect for tunnels, stairwells, and maintenance corridors that need vandal- and moisture-resistant fixtures.
- Suitable for commercial service areas, car washes, and industrial facilities seeking easy-to-install LED replacements.
- Installation Tip: Use the selectable wattage and CCT to match existing system light levels without changing fixtures.
SPECIFICATIONS:
- Wattage: Selectable 30W / 40W / 50W
- Lumens: 3,600 lm (30W), 4,800 lm (40W), 6,000 lm (50W)
- Color Temperature: 3500K / 4000K / 5000K
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Beam Angle: 120°
- Length: 4 ft
- IP Rating: IP65 / NEMA 4X
- Rated Life: 50,000 hours
- Finish / Color: Grey / White
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Standard, ETL Listed, ETL Sanitation
- Surge Protection: 4 kV protection
- Operating Temperature: -40°F to 122°F
- Warranty: 5-Year limited warranty
