Description

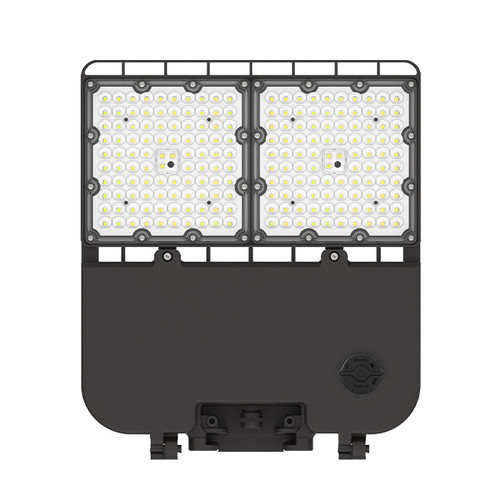

SAL75S/T3/8C3/BK-Z10 Slim Outdoor Area And Wall Luminaire | 25-75W Selectable | Z10 Sensor-Ready
Engineered for reliable perimeter and area illumination, this slim NaturaLED fixture provides field-adjustable output and robust weather protection to simplify stocking and site-specific tuning while reducing energy and maintenance costs.
KEY FEATURES:
- Field-Selectable Output: Choose 25W, 42W, 50W, or 75W in the field to match mounting height and application needs.
- Adjustable Color: 3CCT selection (3000K / 4000K / 5000K) for on-site tuning to preferred color rendition.
- Rugged Outdoor Rating: IP66-rated housing and UV-resistant polycarbonate lens for wet and harsh environments.
- Sensor-Ready: Z10 receptacle pre-installed for easy hookup of motion or photocell controls.
- Controls & Dimming: 0-10V dimming compatibility for energy management and networked control integration.
- Robust Protection: 20KV surge protection option to safeguard against transient events.
- Long Life: L70 >100,000 hours and >80 CRI for consistent performance and color.
- Durable Construction: Die-cast aluminum housing with powder coat finish and long warranty.
APPLICATIONS:
- Ideal for parking lots and garages where uniform, glare-controlled area lighting is required.
- Perfect for perimeter and security lighting at commercial properties and campuses.
- Well-suited for pathways, walkways, and building façade flood lighting.
- Tip: Pair with a Z10 motion/photocell sensor to maximize energy savings and reduce light trespass.
SPECIFICATIONS:
- Wattage: Field-Selectable: 25W / 42W / 50W / 75W
- Lumens: 3,500 / 5,880 / 7,000 / 10,555 lm (corresponding to 25/42/50/75W)
- Color Temperature: 3CCT (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimming: 0-10V
- Surge Protection: 20KV (option)
- Beam Angle / Lens: Type III lens; UV-resistant polycarbonate
- Material / Finish: Die-cast aluminum housing; Color: Black
- Operating Temperature: -40°F to 122°F
- L70 Rated Life: >100,000 hours
- Unit Weight: 8.00 lbs
- Package Dimensions: 16.5" x 13.8" x 4.1"
- Shipping Weight (Master Carton): 9.48 lbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, ETL/cETL Listed
- Ingress Rating: IP66
- Receptacle: Z10 receptacle pre-installed for sensor integration
- Warranty: 7-Year Limited Warranty
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
