Description

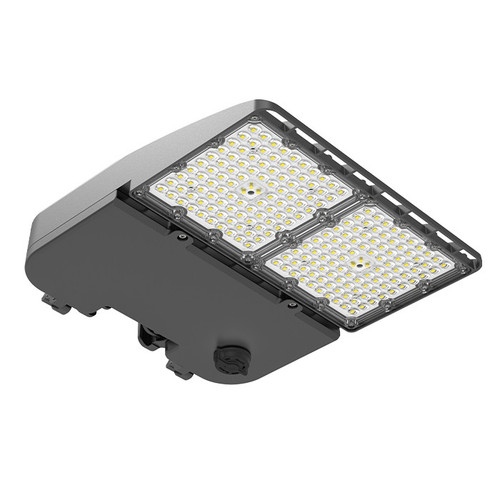

SAL/150S/T3/8C3/BZ/480-Z10 Commercial Slim Area Light | CCT Selectable For Parking, Perimeter And Walkways
The NaturaLED SAL/150S with Z10 receptacle delivers a compact, high-output area lighting solution designed to replace legacy HID fixtures in parking lots, perimeter runs, and walkways. With field-selectable wattages and CCT, the fixture simplifies stocking and installation while enabling targeted light levels and color temperatures for improved security and energy savings.
KEY FEATURES:
- Wattage & Color Selectable: Field-selectable 90/120/150W and 3CCT (3000K/4000K/5000K) for flexible installations.
- Durable Construction: Die-cast aluminum housing with epoxy powder coat finish and UV resistant polycarbonate lens.
- High Performance: Up to 21,118 lumens (150W) with DLC Premium efficacy and Type III distribution for uniform area illumination.
- Sensor Ready: Z10 receptacle pre-installed for easy integration of motion, photocell, and remote sensors.
- Reliable in Harsh Environments: IP66 rated, 20KV surge protection, and wide operating temperature (-40°F to 122°F).
APPLICATIONS:
- Ideal for parking lots and garages requiring uniform, high-output lighting.
- Perfect for perimeter and security lighting around commercial buildings and campuses.
- Well-suited for pathways, walkways, and sign illumination with minimal glare.
- Installation Tip: Pair with Z10 motion or photocell sensors to maximize energy savings and extend maintenance intervals.
SPECIFICATIONS:
- Wattage: 90 / 120 / 150W (Selectable)
- Lumens: 12,649 / 16,800 / 21,118
- Voltage: 277-480V
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >80
- Beam Angle: Type III Distribution
- Dimmable: 0-10V Dimming
- IP Rating: IP66
- Listings: DLC Premium, ETL/cETL Listed
- Surge Protection: 20KV
- Material: Die Cast Aluminum
- Finish / Color: Bronze (Epoxy Powder Coat)
- Dimensions: 14.2 × 12.01 × 2.60 in
- Weight: 8.00 lbs
- Operating Temperature: -40°F to 122°F
- Warranty: 7-Year Limited Warranty (10-Year Optional)
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium; ETL/cETL Listed
- Sensor Compatibility: Z10 Receptacle Ready (Z10 sensors and photocells available as accessories)
- Environment: Suitable for area, parking, perimeter and pathway lighting
