Description

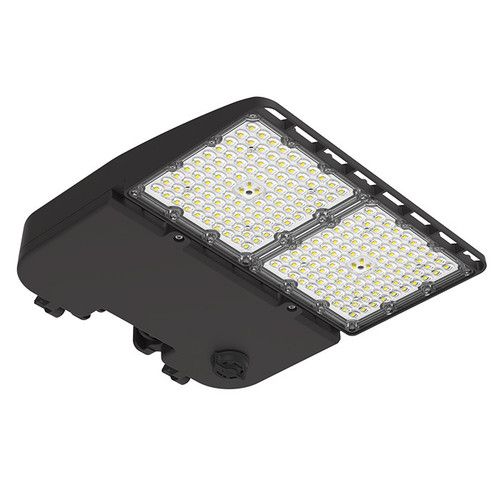

SAL/150S/T3/8C3/BK/480-Z10 CCT Selectable Outdoor Slim Area Light | IP66 Rated, 0-10V Dimmable For Parking Lots And Perimeter Security
Engineered for robust outdoor performance, the NaturaLED SAL/150S delivers selectable wattage and color temperature for tailored illumination of parking lots, perimeter zones, and pathways. The slim die-cast housing and IP66 rating reduce maintenance and withstand harsh environments while offering Z10 remote-ready controls for flexible on-site tuning.
KEY FEATURES:
- Field Selectable Wattage: Choose 90W, 120W, or 150W to match site illumination needs and reduce energy use.
- CCT Selectable: Switch between 3000K, 4000K, and 5000K on-site for optimal color rendering and visual comfort.
- Rugged Outdoor Ready: IP66 rated with UV-resistant polycarbonate lens and epoxy powder coat finish for long-term exterior service.
- Remote & Control Ready: Z10 receptacle pre-installed for twist-lock motion/photocell sensors and remote programming.
- Performance & Protection: DLC Premium listing, ETL/cETL certified, 20kV surge protection option, and 0-10V dimmable driver for precise control.
- Durable Construction: Die-cast aluminum housing with advanced thermal design to extend system life.
APPLICATIONS:
- Ideal for parking lots, perimeter security, and roadway lighting.
- Well suited for pathways, campus grounds, and site lighting around commercial buildings.
- Effective for building flood lighting and sign illumination where directed distribution is required.
- Installation Tip: Use the Type III lens for roadway-oriented distribution; consider Type IV or V lenses for broader area coverage.
SPECIFICATIONS:
- Wattage: Selectable: 90W / 120W / 150W
- Lumens: 12,649 lm / 16,800 lm / 21,118 lm
- Equiv. Wattage: 400-575W
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 277-480V
- Dimmable: 0-10V
- IP Rating: IP66
- Beam Angle / Lens: Type III (Type IV / V optional)
- Surge Protection: 20kV (option)
- Material / Finish: Die-Cast Aluminum, Epoxy Powder Coat (Black)
- Lens: UV-Resistant Polycarbonate
- Rated Life: L70 >100,000 hours
- Weight: 8.00 lbs
- Dimensions: 14.2 × 12.01 × 2.60 in
- Shape / Model: Slim Area Light, Z10 Receptacle Ready
- Warranty: 7-Year Limited Warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, ETL / cETL Listed
- Operating Temperature: -40°F to 122°F
- Accessories: Pole mount, slip fitter, wall mount, yoke mount, motion / photocell sensors (Z10), glare shields, surge protection
