Description

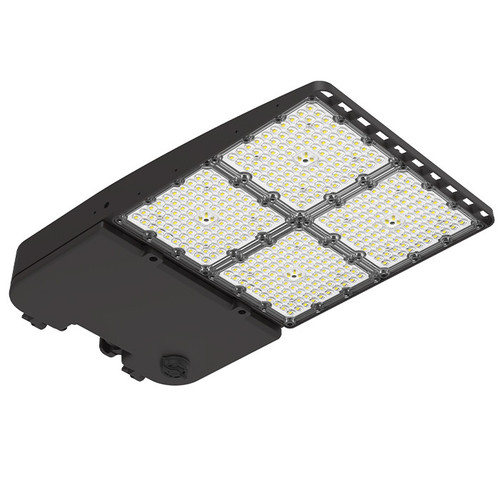

SAL/340S/T3/8C3/BK/480-Z10 Commercial 340W Area And Wall Fixture | CCT Selectable Outdoor Lighting With IP66 And DLC Premium
The SAL/340S Z10 is a high-output, selectable-wattage slim area light engineered for parking lots, pathways, and perimeter security. With DLC Premium efficiency, IP66 weather protection, and Z10 sensor receptacle compatibility, it reduces energy and maintenance costs while delivering consistent, configurable light for demanding outdoor applications.
KEY FEATURES:
- Selectable Output: Field-selectable 200W / 270W / 340W to match site lumen requirements and reduce overlighting.
- Multi-CCT Flexibility: 3CCT (3000K / 4000K / 5000K) allows on-site color tuning for safety and visual comfort.
- Rugged & Reliable: Die-cast aluminum housing with epoxy powder coat finish and UV-resistant polycarbonate lens for long-term outdoor durability.
- Sensor Ready: Z10 receptacle pre-installed for twist-lock motion/photocell sensors and remote control integration.
- High Protection & Efficiency: IP66 rated, DLC Premium listed, and compatible with 20KV surge protection for reliable outdoor performance.
APPLICATIONS:
- Ideal for parking lots and perimeter lighting where high output and reduced maintenance are required.
- Excellent for pathway, security, and site illumination in commercial and industrial campuses.
- Suitable for wall-mounted building flood and sign illumination with Type III distribution.
- Usage Tip: Pair with the Z10 twist-lock photocell or PIR motion sensor to maximize energy savings and meet local control requirements.
SPECIFICATIONS:
- Wattage: Selectable 200W / 270W / 340W
- Lumens: 28,000 / 37,800 / 47,600
- Color Temperature: 3CCT (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 277-480V
- Dimmable: 0-10V
- Surge Protection: 20KV
- IP Rating: IP66
- Lens/Distribution: Type III (Type IV and V lenses available as accessories)
- Material: Die Cast Aluminum
- Finish/Color: Epoxy Powder Coat, Black
- Weight: 15.5 lbs
- Dimensions: 21.65 × 12.01 × 2.67 in
- L70 Rated Life: >100,000 hours
- Listings: DLC Premium, ETL/cETL Listed
- Warranty: 7-Year Limited Warranty (Optional 10-Year available)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: ETL/cETL Listed
- Energy Listing: DLC Premium
- Operating Temperature: -40°F to 122°F
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
