Description

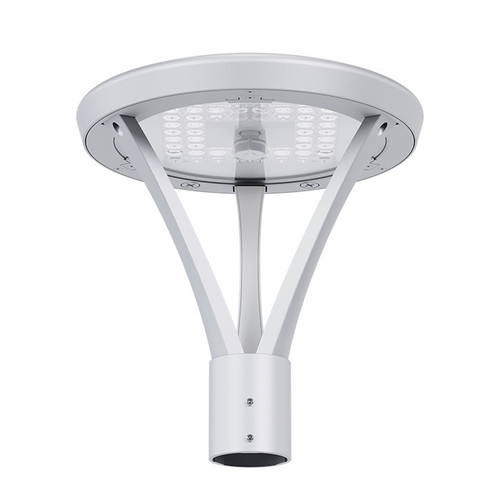

PST16/100S/T5/8C3/WH-Z10 Versatile Outdoor Post Top Lighting | CCT Selectable For Parking, Pathways, And Campuses
The NaturaLED PST16 post top delivers high-output, field-selectable lumen and color options to simplify retrofits and new installs across parking, campus, and streetscape projects. With a pre-installed Z10 receptacle for easy sensor or photocell upgrades, this IP65-rated fixture reduces maintenance and enables flexible control strategies while replacing up to 250W HID equivalents.
KEY FEATURES:
- Wattage & CCT Selectable: Field-selectable 60/80/100W and 3CCT (3000K/4000K/5000K) for on-site tuning.
- Pre-Installed Controls Ready: Z10 receptacle enables plug-and-play photocell or sensor integration for advanced control.
- Durable Outdoor Design: Die-cast aluminum housing with corrosion-resistant powder coat and IP65 rating for wet locations.
- High Performance: Up to 12,000 lumens output, 0-10V dimming, and 20kV surge protection for reliable operation.
- Listed & Supported: DLC Premium and ETL/cETL listings with a 5-year limited warranty.
APPLICATIONS:
- Ideal for parking lots, perimeter and pathway lighting.
- Well suited for corporate and educational campus exteriors.
- Effective for parks, walkways, and streetscape illumination.
- Installation Tip: Use the pre-installed Z10 receptacle to add a twist-lock photocell or motion sensor for automated control and energy savings.
SPECIFICATIONS:
- Wattage: Selectable 60W / 80W / 100W
- Lumens: 7,200 / 9,600 / 12,000
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Surge Protection: 20KV
- Beam Angle: Type 5
- Material: Die Cast Aluminum
- Color / Finish: White, Corrosion-Resistant Powder Coat
- IP Rating: IP65
- Listings: DLC Premium, ETL/cETL Listed
- Warranty: 5-Year Limited Warranty
- Weight: 13.5 lbs
- Dimensions: 15.6 × 15.6 × 17.40 in
- Pre-Installed Feature: Z10 Receptacle
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: ETL / cETL Listed
- DLC: DLC Premium Qualified
- Environment: Suitable for wet locations; operating temperature -40°F to 122°F
