Description

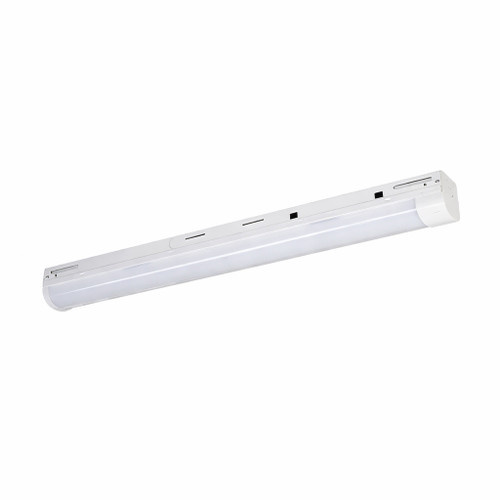

CSL2/23S/24FR/8C3 CCT Selectable 2ft Commercial Strip Light | PIC Sensor-Ready, 0-10V Dimmable For Warehouses And Parking Garages
The NaturaLED CSL2 2ft commercial strip light delivers flexible, low-maintenance illumination for industrial and commercial spaces. With field-selectable wattages and CCT options plus PIC sensor compatibility, this fixture simplifies retrofits and new installs while reducing energy use and on-going maintenance.
KEY FEATURES:
- Field Selectable: Choose from 15W, 19W, or 23W wattage settings with corresponding lumen outputs for tailored light levels.
- CCT Selectable: Switchable color temps (3500K / 4000K / 5000K) to match space requirements and visual comfort.
- PIC Sensor-Ready: Integrated Plug-In Connector (PIC) for quick installation of PIR or microwave sensors without fixture disassembly.
- Dimmable Control: 0-10V dimming for smooth, energy-saving daylight and occupancy control integration.
- Durable Construction: Sheet metal housing with epoxy resin white finish and polycarbonate diffused lens for even, glare-controlled illumination.
- High Performance: DLC Standard listing, ETL/cETL listed, CRI >80, and surge protection (2KV) for reliable service in commercial environments.
- Warranty: 5-Year limited warranty for long-term confidence.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring uniform aisle lighting.
- Suited for parking garages and covered exterior areas where damp-rated fixtures are needed.
- Effective in stairwells, hallways, storage rooms, and general utility spaces.
- Usage Tip: Pair with NaturaLED PIC sensors to maximize energy savings and enable occupancy-based dimming.
SPECIFICATIONS:
- Wattage: Selectable: 15W / 19W / 23W
- Lumens: 1,950 / 2,485 / 2,990
- Color Temperature: CCT Selectable (3500K, 4000K, 5000K)
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Beam Angle: 120°
- Lens: Polycarbonate Diffused Lens
- Material / Finish: Sheet Metal (Steel) / White Epoxy Resin Coating
- Length: 2 ft (24 in)
- Rated Life: L70 >100,000 hours
- Listings: DLC Standard, ETL/cETL Listed
- Warranty: 5-Year Limited Warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Location Rating: Suitable for Damp Locations
- Sensors & Controls: PIC (Plug-In Connector) ready for P10616 PIR or P10590 microwave sensors; compatible remote programmers available.
- Surge Protection: 2KV built-in
- Default Setting: Preset to the highest wattage with 4000K
