Description

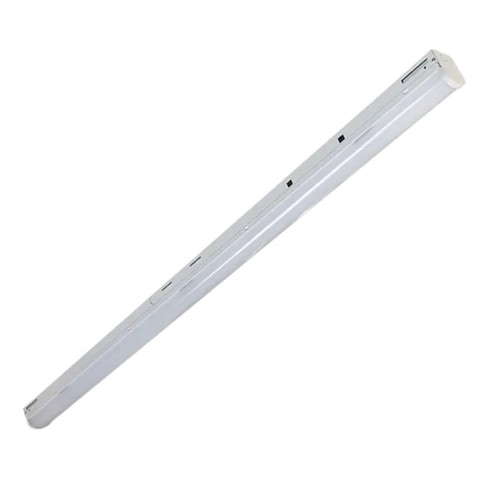

CSL2/68S/96FR/8C3 8-ft Commercial Strip Light | CCT Selectable Area Fixture For Warehouses, Parking, And Retail
The NaturaLED CSL 2 (SKU 9738) is an 8-foot, narrow-profile commercial strip light engineered for energy savings and fast sensor integration. Its plug-in connector (PIC) makes it simple to add PIR or microwave sensors on-site, while selectable wattage and color temperature options let contractors and facility managers tailor light levels and color for warehouses, parking structures, and retail spaces.
KEY FEATURES:
- Flexible Light Output: Field-selectable wattages for three output levels (44W / 58W / 68W) to match application needs and reduce inventory complexity.
- CCT Selectable: Switchable between 3500K, 4000K, and 5000K to optimize color for task or security lighting.
- PIC Sensor Ready: Integrated Plug-In Connector (Type 1) enables quick installation of PIR or microwave sensors without fixture disassembly.
- Robust Performance: Durable steel housing with polycarbonate diffused lens and 2KV surge protection for reliable operation in commercial environments.
- Controls & Dimming: 0-10V dimming compatibility for smooth integration into lighting control systems.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring high-efficiency, uniform aisle lighting.
- Well-suited for parking garages and stairwells where sensor-ready fixtures improve safety and reduce runtime.
- Effective in retail and storage areas for consistent, glare-free general illumination.
- Usage Tip: Pair with a PIC-compatible PIR or microwave sensor to maximize energy savings and automate on/off control.
SPECIFICATIONS:
- Wattage: Selectable — 44W / 58W / 68W
- Lumens: 6,248 / 8,004 / 9,180 (depending on wattage)
- Color Temperature: 3CCT (3500K / 4000K / 5000K) — CCT Selectable
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Beam Angle: 120°
- Lens: Polycarbonate Diffused Lens
- Material / Finish: Sheet Metal (Steel) with White Epoxy Resin Coating
- Mount: Surface Mount (J-box cover plate included) or Suspended (optional V-hook and hanging cable)
- Length: 8 ft
- Surge Protection: 2KV
- Compatible Emergency Driver: BAEM15-48BC/MV-A (15W) for SKU 9738
- L70: >100,000 hours
- Default Setting: Preset to the highest wattage with 4000K
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL / cETL Listed
- Listings: DLC Standard
- Location Rating: Suitable for Damp Locations
- Warranty: 5-Year Limited Warranty
