Description

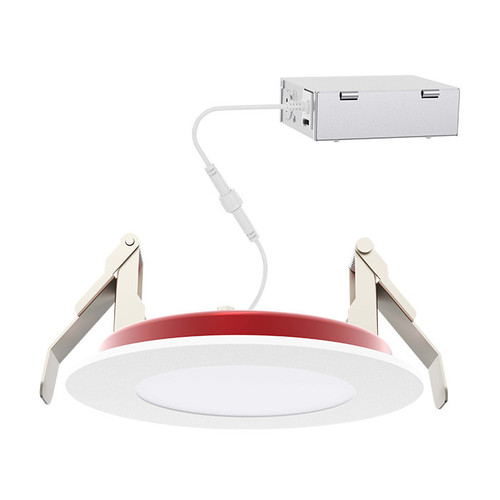

LED4DLR-FR-82L9CCT5 Ultra-Slim 4" Round Surface-Mount Disk Light | CCT Selectable for Kitchens, Hallways, and Bathrooms
Designed for low-profile retrofits and new installs where a recessed can isn’t practical, the NaturaLED LED4DLR-FR-82L9CCT5 delivers selectable color temperatures, high color rendering, and fire-rated wet-location performance in a 4" slim disk form factor. It provides bright, even flood light while minimizing ceiling intrusion and maintenance needs.
KEY FEATURES:
- Ultra-Slim Design: Surface-mount 4" round disk light fits where recessed cans are not feasible.
- CCT Selectable: Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) for flexible mood and task lighting.
- High Quality Light: CRI >90 for accurate color rendering in residential and commercial spaces.
- Energy Efficient: 10W delivering approximately 820 lumens for low energy use and long life.
- Dimmable & Code-Ready: Dimmable with compatible controls; JA8 / Title 24 compliant and IC rated.
- Rugged & Safe: ETL listed, wet-location suitable and fire-rated for added installation flexibility.
- Durability: Rated life 50,000 hours with a 5-year limited warranty.
APPLICATIONS:
- Ideal for kitchens where shallow ceilings require low-profile fixtures.
- Perfect for hallways and corridors needing consistent, glare-controlled illumination.
- Suitable for bathrooms and other damp locations requiring wet-rated fixtures.
- Installation Tip: Recommended ceiling height is 9–10 ft for optimal uniform illumination.
SPECIFICATIONS:
- Wattage: 10W
- Lumens: 820 lm
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (5CCT)
- CRI: >90
- Voltage: 120V
- Dimmable: Yes
- Beam Angle: Flood
- Input Current: 0.10 - 0.12A
- Power Factor: >0.9
- Rated Life: 50,000 hours
- Size / Shape: 4" Round Slim Disk
- Weight: 0.90 lbs
- Surge Protection: DM = 1KV, CM = 2KV
- Compatible Emergency Driver (ordered separately): 7337 BAEM25-170BC/347-C
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: ETL Listed, IC Rated, JA8 / Title 24
- Location Rating: Suitable for wet locations
- Fire Rated: Yes (FR)
- Warranty: 5-year limited warranty
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
