Description

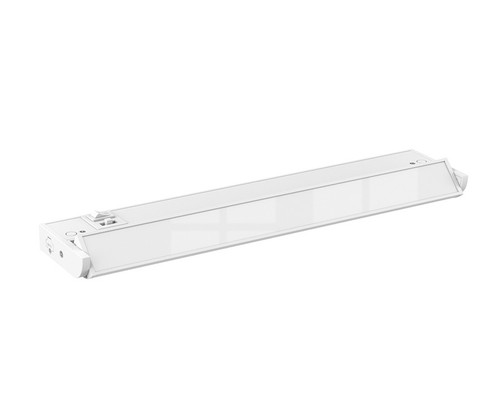

FXUC11/16FR/9CCT5 Low-Profile Under Cabinet LED Fixture | CCT Selectable For Kitchen Task, Display, And Accent Lighting
Specifically designed for kitchen cabinets, workbenches, and display cases, the NaturaLED under-cabinet fixture delivers flexible, high-quality task lighting with simple installation and field-selectable color temperatures to match any application. Its low-profile white diffuser and integrated on/off switch provide clean, glare-controlled illumination while reducing maintenance and energy costs.
KEY FEATURES:
- CCT Selectable: Five field-selectable color temperatures (2700K/3000K/3500K/4000K/5000K) to suit task or accent lighting needs.
- Compact Design: Low-profile 16" housing with white acrylic diffuser for even, wide beam distribution.
- Integrated Controls: Built-in on/off switch and 6ft power cable with quick connector for fast, tool-free installation.
- Dimmable: Compatible with dimmers (see dimmer list) for adjustable illumination levels.
- Long Life & Efficient: 11W power draw, 620 lumens, 55 lm/W efficacy, and a 50,000-hour rated life.
- Robust Electricals: PF >0.9, THD <20%, 2.5kV surge protect level.
- Reliable Warranty: 5-year limited warranty with ETL/cETL listings and multiple performance verifications (LM79/LM80).
APPLICATIONS:
- Ideal for kitchen under-cabinet task lighting and countertop illumination.
- Perfect for workshops, utility cabinets, and hobby stations requiring consistent task light.
- Great for retail displays or cabinetry to highlight products or decorative surfaces.
- Tip: Mount near the front edge of cabinets for even countertop illumination and minimal shadowing.
SPECIFICATIONS:
- Wattage: 11W
- Lumens: 620
- Efficacy: 55 lm/W
- Color Temperature: CCT Selectable (2700K / 3000K / 3500K / 4000K / 5000K)
- CRI: 90
- Input Voltage: 120V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.105 A
- Power Factor: >0.9
- THD: <20%
- Surge Protect Level: 2.5 kV
- Dimmable: Yes
- Length: 16"
- Dimensions: Width 16" x Height 0.97" x Depth 3.62"
- Rated Life: 50,000 hours
- Beam Angle: Adjustable
- IP Rating: IP20
- Warranty: 5 year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL / cETL Listed
- Performance Documentation: LM79, LM80, IES File available
- Compliance: JA8, DLC, Energy Star, RoHS
- Operating Temperature: -4°F to 104°F
- Storage Temperature: -40°F to 185°F
