Description

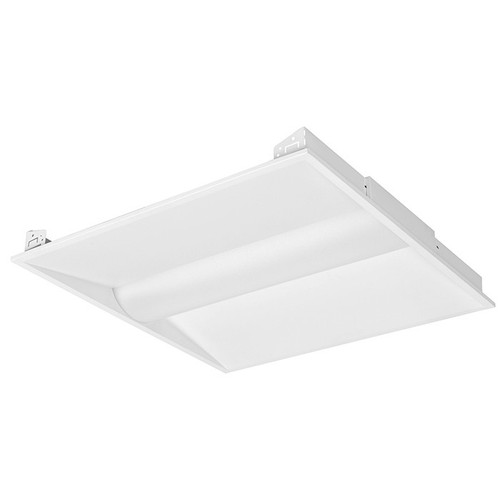

TF40S/2X2/8C3/TAA CCT Selectable 2'x2' LED Troffer | Damp Location Commercial Grid Ceiling Fixture For Offices, Schools, Healthcare
The NaturaLED TF40S 2'x2' troffer simplifies retrofits in commercial and institutional spaces by combining field-selectable wattage and color temperature with a low-profile, T-Bar grid design. Installers and facility managers benefit from fewer SKUs, flexible light output options, and reliable, energy-saving performance for offices, classrooms, and healthcare areas.
KEY FEATURES:
- Wattage & CCT Selectable: Field-adjustable 20/30/40W and 35K/40K/50K (3500/4000/5000K) options to match application needs on-site.
- Energy & Maintenance Savings: High-efficiency LED outputs (2,600 / 3,900 / 5,200 lm) reduce energy use and re-lamping frequency compared to legacy fixtures.
- Commercial-Grade Construction: Steel housing with polycarbonate lens provides uniform distribution and durable, low-glare illumination.
- Controls Ready: 0-10V dimmable driver and universal 120-277V input for compatibility with common building systems.
- Compliance & Project Use: DLC Premium, ETL/cETL Listed, Damp Location Rated and TAA Compliant for government and commercial projects.
APPLICATIONS:
- Ideal for office ceilings, providing balanced task and ambient lighting.
- Well-suited to schools and classrooms for uniform, glare-controlled illumination.
- Appropriate for healthcare and clinic areas where reliable, selectable light is needed.
- Installation Tip: Designed for T-Bar/Grid ceilings—select desired wattage and CCT during installation for immediate customization.
SPECIFICATIONS:
- Wattage: 20 / 30 / 40W
- Lumens: 2,600 / 3,900 / 5,200 lm
- Color Temperature: 3CCT (35K / 40K / 50K)
- CRI: 80
- Voltage: 120-277V
- Dimmable: 0-10V
- Beam Angle: 115°
- Size: 2' x 2'
- Lens: Polycarbonate
- Material: Steel
- Rated Life: 50,000 hours
- Warranty: 5 Year
- Listings: DLC Premium, ETL/cETL Listed
- Location Rating: Damp Location
- Compliance: TAA Compliant
- Weight: 5.10 lbs (2'x2' unit)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: ETL/cETL Listed
- Performance: DLC Premium
- Location Rating: Suitable for Damp Locations
- Warranty: 5-Year Limited Warranty
