Description

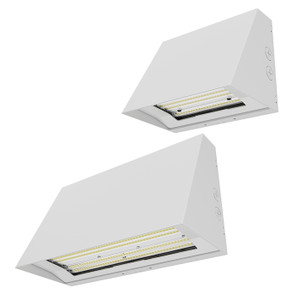

CWP100S/BS/8C3/BK-PHO Angle-Adjustable Full Cut-Off Wall Pack | CCT Selectable Outdoor Security Lighting for Facade & Perimeter
Built for perimeter and façade illumination, the NaturaLED 9823 Full Cut‑Off Wall Pack streamlines inventory and installation with field-selectable wattages and CCT. Its robust IP65 housing, integrated photocell, and high efficacy output reduce energy use and maintenance while delivering targeted, glare‑controlled security lighting.
KEY FEATURES:
- Field-Selectable Output: Choose 60W, 80W, or 100W on-site to match mounting and application needs.
- CCT Selectable: Switch between 3000K, 4000K, and 5000K for warm-to-daylight tuning without changing fixtures.
- Weatherproof Durability: IP65-rated housing with IK08 impact resistance for reliable outdoor performance.
- Integrated Controls: Built-in photocell and 0-10V dimming support for automated, energy-saving operation.
- High Efficiency: Exceptional efficacy reduces energy consumption while maintaining required light levels.
APPLICATIONS:
- Ideal for building perimeters and façade accent/security lighting.
- Perfect for parking areas, walkways, and loading dock illumination.
- Well suited to industrial sites, campuses, and commercial exteriors.
- Installation Tip: Recommended mounting height: 16–32 ft for optimal coverage.
SPECIFICATIONS:
- Wattage: Selectable 60 / 80 / 100W
- Lumens: 8,400 / 11,200 / 14,000 lm
- Efficacy: 140 lm/W
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: 70
- Voltage: 120-277V
- Dimmable: 0-10V
- Photocell: Included
- IP Rating: IP65
- IK Rating: IK08
- Rated Life: 50,000 hours
- Product Code: CWP100S/BS/8C3/BK-PHO
- Dimensions: 13.34" W x 8.26" H x 5.86" D
- Mounting Height: 16–32 ft
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: DLC Premium, UL Listed
- Operating Temperature: -40°F ~ 122°F
- Warranty: 5-year limited warranty
- Accessories: Optional PIR sensor accessory available; integrated photocell included
