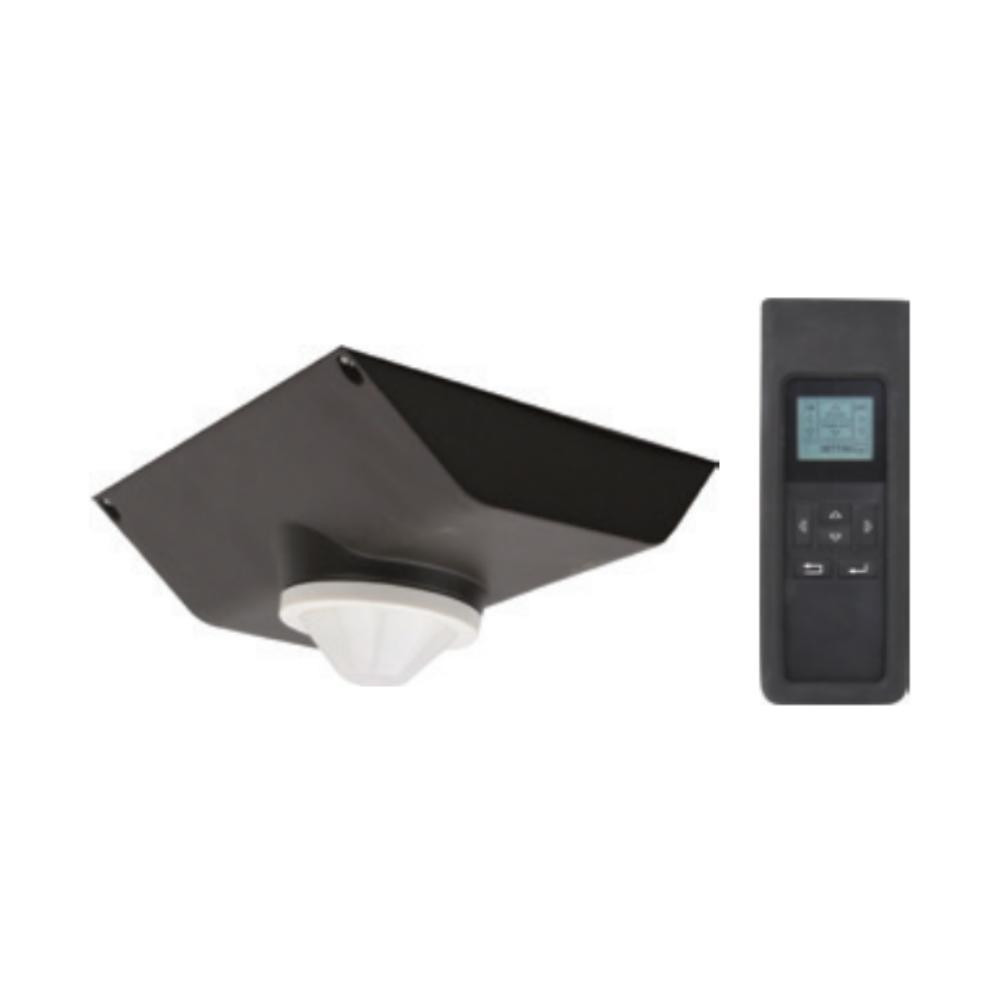

PLT/LDB/9SWD Remote Photocell Module For Slim Area Light Fixtures | Dark Bronze Finish | 0-10V Dimming Compatible
Streamline site illumination upgrades by adding a remote-controllable photocell module that enables centralized dimming and automated dusk-to-dawn control, reducing maintenance trips and optimizing energy use for Slim Area Light installations.
KEY FEATURES:
- Remote Control Ready: Allows wireless or remote management of motion/photocell functions for centralized lighting schedules.
- 0-10V Dimming Compatible: Smooth dimming integration with existing 0-10V controls for energy savings and lower glare during off-peak hours.
- Optimized Optics: 3X C Lens design tuned for 29-100W SAL fixtures to enhance distribution and coverage.
- Durable Finish: Dark bronze plate designed to match Slim Area Light housings for a seamless, factory-installed appearance.
APPLICATIONS:
- Ideal for parking lot upgrades and retrofit projects using Slim Area Lights.
- Well suited for streetscape and site lighting installations seeking centralized control.
- Perfect for commercial properties that require automated dusk-to-dawn and motion-aware lighting.
- Usage Tip: Install on 29-100W SAL models and configure 0-10V scenes for off-peak dimming to maximize savings.
SPECIFICATIONS:
- Model: PLT/LDB/9SWD
- Product Type: Remote Controllable Sensor / Photocell Module
- Dimming: 0-10V
- Voltage: 100-277V
- Lens: 3X C Lens (29-100W)
- Compatible Watt Range: 29-100W
- Finish: Dark Bronze Plate
- Intended Fixture: Slim Area Light (SAL) models
