Description

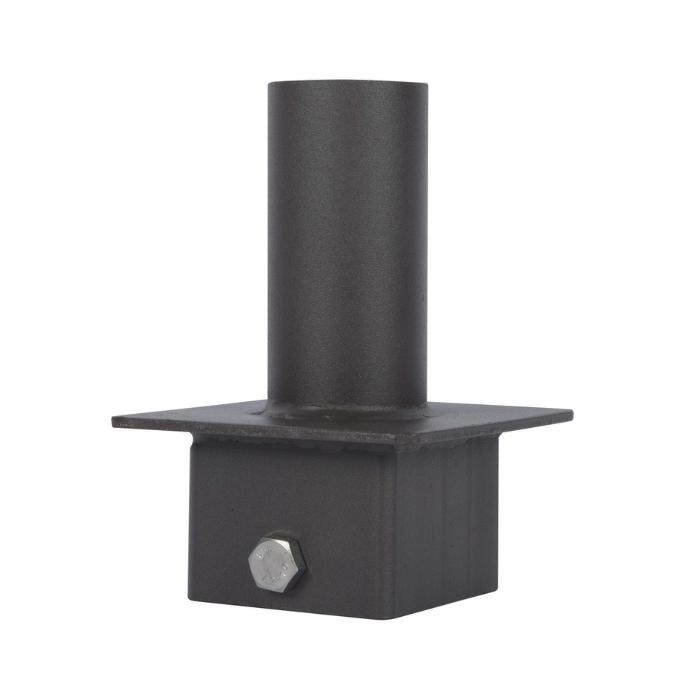

MT-3STV2.5-1/BZ Vertical Square Tenon Pole Adapter For 3-Inch Posts | Bronze Finish | Fits 2-3/8-Inch Fixture Heads
Designed to simplify pole-mounted luminaire installations, the MT-3STV2.5-1/BZ adapter converts a 3" square tenon to a 2-3/8" single-head mount, delivering a secure, low-profile bronze interface that speeds installation and stabilizes outdoor fixtures.
KEY FEATURES:
- Direct Conversion: Adapts a 3" square tenon to a 2-3/8" single-head connection for broad fixture compatibility.
- Durable Finish: BZ bronze finish resists corrosion and blends with outdoor pole-mounted luminaires.
- Secure Fastening: Uses 2-M12 attachment points for reliable mechanical retention.
- Compact Profile: Low-profile design keeps fixtures close to the pole for a streamlined appearance.
- Simple Installation: Predefined mounting dimensions reduce on-site fitting time.
APPLICATIONS:
- Ideal for street lighting and area luminaires on pole-mounted installations.
- Well suited for parking lot, pathway, and campus illumination systems.
- Commonly used in commercial and municipal outdoor lighting retrofit projects.
- Usage Tip: Verify tenon OD and fixture receiver dimensions before installation to ensure a proper fit.
SPECIFICATIONS:
- Order Number: P10351
- Model Number: MT-3STV2.5-1/BZ
- Description: 3” Square Tenon Vertical to 2-3/8” Single head
- Outer Diameter: Φ2.36in (60mm)
- Inner Diameter: Φ2.05in (52mm)
- Length: 3.94in (100mm)
- Thickness: 0.59in (15mm)
- Mounting Fasteners: 2-M12
- Overall Height: 7.68in (195mm)
- Projection: 2.56in (65mm)
