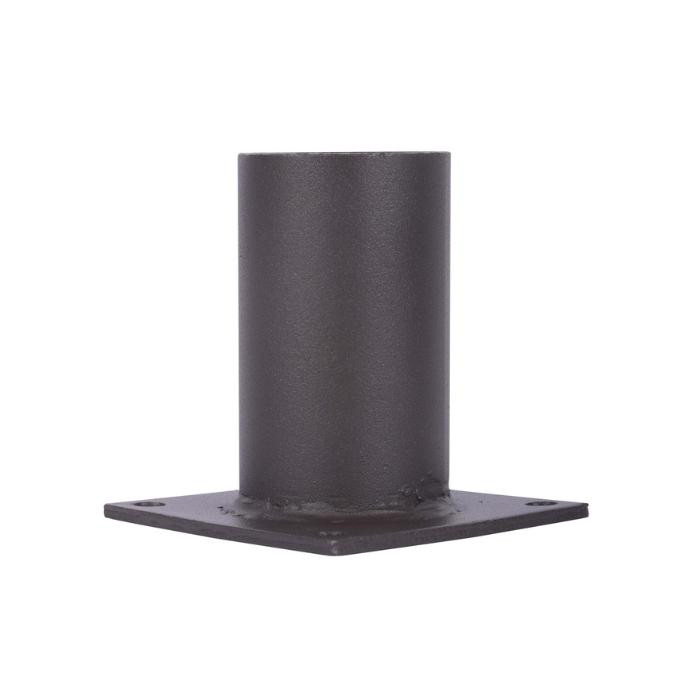

MT-4WM2.5-1/BZ Heavy-Duty 4-Inch Wall Mount Adapter For 2-3/8-Inch Single Head Fixtures | Outdoor Weather-Resistant Bracket
Save installation time with a purpose-built wall mount bracket engineered to secure 2-3/8" single-head fixtures to 4" wall locations, providing a reliable, low-maintenance mounting solution for outdoor lighting upgrades.
KEY FEATURES:
- Direct Compatibility: Designed specifically to adapt 4" wall mounts to 2-3/8" single-head fixtures for a precise fit.
- Compact Footprint: Low-profile design reduces visual impact while maintaining secure fixture placement.
- Robust Construction: Built for outdoor mounting and repeated installation cycles; minimizes rework in pole and wall installations.
- Model-Specific Design: Exact fit for MT-4WM2.5-1/BZ applications using order number P10363.
- Easy Identification: Marked with model and order numbers for quick inventory and maintenance reference.
APPLICATIONS:
- Ideal for exterior building facades and canopy lighting mounting.
- Well-suited for commercial property perimeters and security fixtures.
- Commonly used in retrofit projects for pole-mounted single-head luminaires.
- Tip: Verify 2-3/8" single-head post diameter before installation for a secure fit.
SPECIFICATIONS:
- Product Name: 4” WALL MOUNT SINGLE HEAD
- Order Number: P10363
- Model Number: MT-4WM2.5-1/BZ
- Type: POLE MOUNTING BRACKET / 4” Wallmount to 2-3/8” Single Head
- Φ2.36in: (60mm)
- Φ2.05in: (52mm)
- Dimension: 4.21in (107mm)
- Dimension: 4.02in (102mm)
- Dimension: 3.15in (80mm)
- Hole Diameter: 4-Φ0.35in (9mm)
- Hole Diameter: 4-Φ0.2in (5mm)
