Description
Type A Fluorescent Ballast | 2 × F28T5 | 120–277V | Programmed Start | High Power Factor

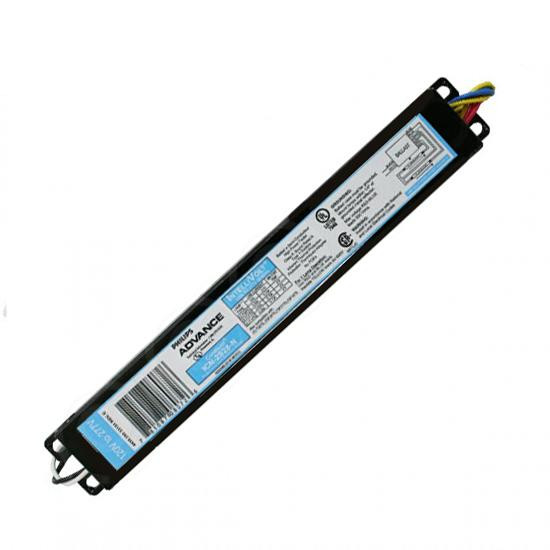

Advance ICN-2S28-N is a Centium-series electronic T5 ballast designed to operate two F28T5 fluorescent lamps in series. It also supports ballast-dependent (Type A) T5 LED tubes that are approved for use with electronic programmed start ballasts. With universal 120–277V input, this ballast delivers reliable starting, reduced lamp wear, and stable performance in commercial and institutional lighting systems.
Product Specifications
- Brand: Advance (by Signify)
- Series: Centium T5
- Model: ICN-2S28-N
- Ballast Type: Electronic
- Starting Method: Programmed Start
- Compatible Lamp Types: F28T5 Fluorescent and Type A (Ballast Dependent) T5 LED Tubes*
- Number of Lamps: 2
- Lamp Connection: Series
- Rated Lamp Wattage: 28W per lamp
- Input Voltage: 120–277V
- Input Frequency: 50/60 Hz
- Input Power (ANSI): 64W @ 120V / 62W @ 277V
- Input Current: 0.53A @ 120V / 0.23A @ 277V
- Ballast Factor: 1.03
- Power Factor: ≥0.98
- Total Harmonic Distortion (THD): ≤10%
- Lamp Current Crest Factor: ≤1.7
- Minimum Starting Temperature: 0°F (-18°C)
- Sound Rating: Class A
- Operating Frequency: Above 42 kHz
- End-of-Lamp-Life Protection: Yes
- Auto Restart: Yes
- Open and Short Circuit Tolerant: Yes
- Certifications: UL Listed, Class P, Type 1 Outdoor, CSA, RoHS Compliant
- Warranty: 5-Year Limited Warranty
- Enclosure Length: 9.5 in
- Enclosure Width: 1.3 in
- Enclosure Height: 1.0 in
- Mounting Dimension: 8.9 in
*LED tube compatibility depends on the LED manufacturer’s approved ballast compatibility list.
