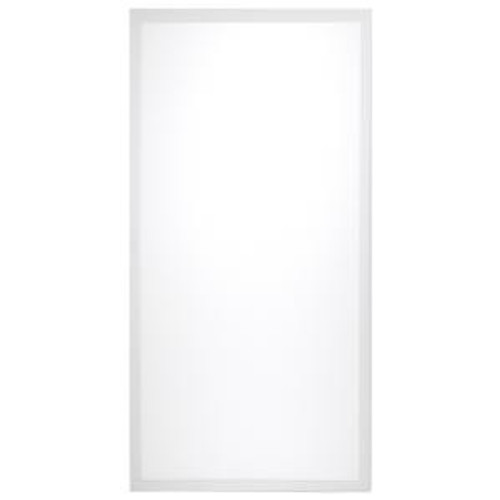

Satco 65-576R1 - 2x4 LED Emergency Backlit Flat Panel - Wattage and CCT Selectable

SKU:
SAT-65-576R1
$252.99
Customer Reviews

Description

LED Battery Back Up Backlit Flat Panel | 30W/40W/50W | 100-277V | ColorQuick & PowerQuick Technology

The Satco 65-576R1 is a 2x4 ft. LED emergency backlit flat panel featuring selectable wattage (30W, 40W, 50W) and CCT options (3500K, 4000K, 5000K), providing flexibility to suit various lighting requirements. Equipped with ColorQuick and PowerQuick Technology, this fixture offers enhanced adaptability and performance. Designed for indoor commercial applications, it delivers lumen outputs ranging from 3,300 to 5,750 lumens, ensuring efficient and uniform illumination.

Features

  • Selectable Wattage: 30W, 40W, or 50W
  • Selectable CCT: 3500K (Warm White), 4000K (Neutral White), 5000K (Cool White)
  • Lumen Output: 3,300 to 5,750 lumens
  • Voltage: 100-277V
  • Beam Angle: 120° for wide light distribution
  • Dimming: 0-10V dimmable
  • IP Rating: IP20 (indoor use)
  • Construction: Aluminum and steel with a poly methyl methacrylate (PMMA) lens
  • Dimensions: 47.72" L x 23.75" W x 3.06" H
  • Operating Temperature: -17°C (+1.4°F) to +45°C (+113°F)
  • Certifications: cETLus Listed, DLC Approved, NSF Approved, RoHS Compliant, FCC Compliant
  • Warranty: 5-year limited

Benefits

  • Energy Efficiency: Reduces energy consumption with selectable wattage options
  • Customizable Lighting: Adjustable color temperatures to match specific ambiance requirements
  • Emergency Functionality: Integrated emergency backup ensures illumination during power outages
  • Durable Design: Robust construction suitable for commercial environments
  • Easy Installation: Designed for standard 2x4 ft. grid ceilings with built-in surge protection (2KV)

Applications

  • Office spaces
  • Retail stores
  • Educational facilities
  • Healthcare facilities
  • Commercial settings requiring reliable emergency lighting solutions

Downloads


Disclaimers

*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.

Extra Information

Brand:
Satco
UPC:
045923657184
Model No.:
65-576R1
Wattage:
30W /40W/50W
Voltage:
100V-277V
Lumen:
3300 lm to 5750 lm
Beam Angle:
120 Degree
Color Temperature:
CCT Selectable
CCT Range:
3500K, 4000K, 5000K
CRI:
80+
Emergency Operation:
90 Minute
Life Hours (Avg):
50,000 Hrs.
Rating:
Damp Rated
Operational Temperature:
+1.4°F - +113°F
Length (in.):
47.72
Diameter (in.):
23.75
Height (in.):
3.06
Price Shown:
Per Fixture
