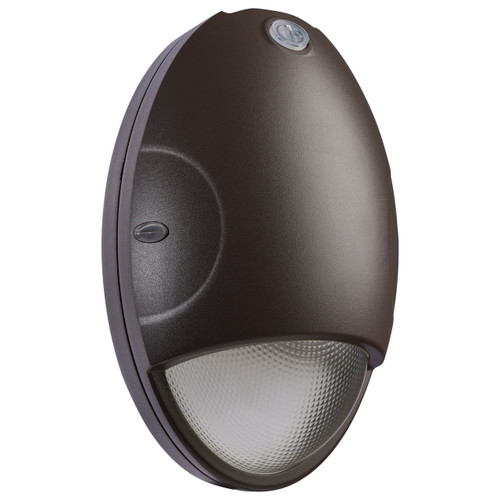

Compact Emergency Wall Pack With Photocell And Integrated Emergency Battery Backup | IP65 Wet-Rated Outdoor Security Lighting
Engineered for dependable perimeter and exterior illumination, this compact wall pack combines selectable color temperatures with an integrated emergency battery to keep critical areas lit during power interruptions while reducing maintenance and energy costs.
KEY FEATURES:
- Selectable Color Temperature: Choose 3500K, 4000K, or 5000K to match site lighting requirements and visual preferences.
- Integrated Emergency Backup: Built-in battery mode provides 5W output with a 90-minute run time for reliable egress and security lighting during outages.
- Wet-Rated Durability: IP65 housing and die-cast aluminum construction resist moisture and harsh outdoor conditions.
- Energy Efficient: 15W LED output delivers 1,740–1,814 lumens, replacing higher-wattage legacy fixtures with lower energy use.
- Photocell & Surge Protection: Includes an integral photocell for dusk-to-dawn control and 2.5KV surge protection for improved reliability.
APPLICATIONS:
- Ideal for building perimeters, loading docks, and entranceway security lighting.
- Well suited for commercial and residential exterior walls where wet-location rated emergency lighting is required.
- Great for retrofit and new-construction projects needing low-maintenance, emergency-capable fixtures.
- Usage Tip: Enable the built-in photocell for automated dusk-to-dawn operation and maximize energy savings.
SPECIFICATIONS:
- Wattage: 15W
- Lumens: 1,740–1,814
- Color Temperature: 3500K / 4000K / 5000K
- CRI: 80+
- Hours Rated: 50,000
- Beam Angle: 100°
- Voltage: 120V–277V
- Amps: 0.125–0.054A
- Power Factor: 0.9
- Dimming: 0-10V Dimming (Dimmable)
- Emergency Battery: 5W, 90 Minute Run Time
- Lens Material: Polycarbonate (PC)
- Material / Finish: Die-Cast Aluminum, Bronze
- Dimensions (H x W x L): 10.83" x 4.06" x 6.77"
- Fixture Type / Lamp: Wall Pack / Integrated LED
- Incandescent Equivalent: 75W
- HID Equivalent: 60W
CERTIFICATIONS & ADDITIONAL NOTES:
- Location Rating: Wet (IP65)
- Safety Listings: cULus Certified
- DLC: Approved
- FCC: Compliant
- RoHS: Compliant
- Surge Protection: Built-in 2.5KV
- Warranty: 5-Years
