Description
Outdoor LED Wall Pack For Entrances And Pathways | Soft White 3000K To Daylight 5000K Options | IP65 Wet-Rated 10/15/20W

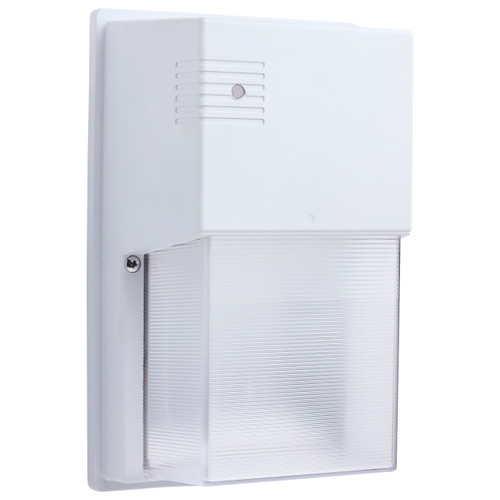

Provide flexible, low-maintenance illumination for building entrances and perimeter areas with the Satco 65-987. This compact, die-cast aluminum wall pack offers selectable light output and color temperatures to match site needs while cuttting maintenance with integrated LED performance and robust outdoor protection.
KEY FEATURES:
- Selectable Output: Choose 10W, 15W, or 20W to tailor brightness and energy use for each mounting location.
- Selectable Color: Switch between 3000K, 4000K, and 5000K to match ambient lighting or security needs.
- Durable Outdoor Construction: Die-cast aluminum housing with prismatic polycarbonate lens and IP65 wet-location rating.
- Control Ready: 0-10V dimming support enables smooth dimming and integration with building controls.
- Built-In Protection: Integrated 2.5 kV surge protection and >0.9 power factor for reliable outdoor operation.
APPLICATIONS:
- Ideal for building entrances, entryways, and loading zone illumination.
- Well suited for perimeter and pathway security lighting around commercial or multi-family properties.
- Use on retrofit or new-construction exterior walls where wet-location rated fixtures are required.
- Installation Tip: Use the integrated photocell for dusk-to-dawn control, noting the photocell does not function in artificial light.
SPECIFICATIONS:
- Wattage: 10W / 15W / 20W
- Lumens: 1,410 - 2,839
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80+
- Hours Rated: 50,000
- Beam Angle: 100°
- Voltage: 120V-347V
- Dimming: 0-10V Dimming Only
- Power Factor: >0.9
- Surge Protection: Built-in 2.5 kV
- Operating Temp: -40°C to +50°C
- IP Rating: IP65 (Wet Location)
- Finish: White
- Material: Die-cast Aluminum
- Lens Material: Polycarbonate (Prismatic)
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus
- DLC: Approved
- RoHS: Yes
- Location Rating: Wet
