Description
500W HID Replacement - 33,380/26,081/18,124 lm - Wattage and CCT Selectable - Type B Ballast Bypass

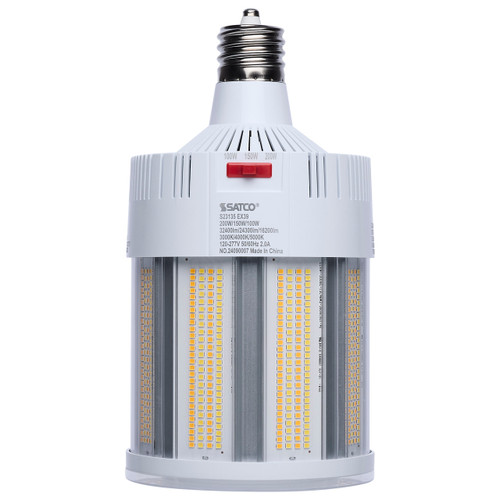

The Satco S23135 is a wattage-selectable LED corn bulb rated to replace compatible 500W HID lamps from an EX39 Mogul Extended base. Review our complete range of high wattage bulbs and review wattage, lumen output, base, voltage and fixture requirements side by side.
Product Specifications
- Brand: Satco
- Manufacturer Model: 200W/LED/CCT/100-277V/EX39
- Actual LED Wattage: Selectable 200W/150W/100W
- HID Replacement: 500W
- Lumen Output: 33,380/26,081/18,124 lm
- Color Temperature: CCT Selectable (3000K/4000K/5000K)
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80+
- Dimmable: Yes
- Bulb Shape: Corn
- Warranty: 5 Years
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Selectable color temperature lets one lamp cover multiple installations
- Retains the existing fixture housing when replacing compatible 500W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
Applications
- Outdoor security and perimeter lighting
- Parking lot, canopy, and area lighting retrofit projects
- Industrial and commercial HID replacement applications, indoor or outdoor
- Enclosed fixtures where the lamp is rated for enclosed use
- Damp-location fixtures per the stated rating
Downloads
Disclaimers
*This product is built to order and typically ships in 2 to 3 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 5 business days to ship.
