Description

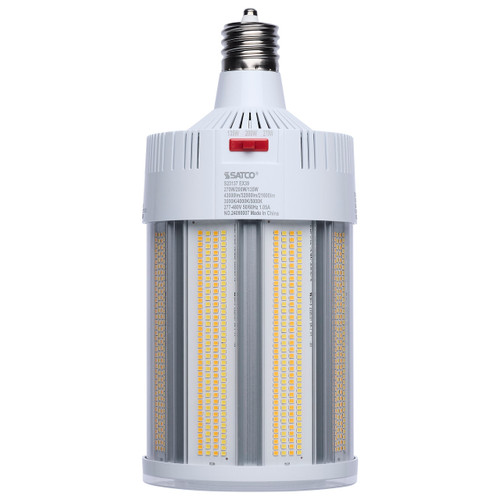

Retrofit High-Output Corn Lamp For Pole And Parking Lot Lighting | CCT Selectable (Soft White To Daylight) IP54 Rated
Replace legacy 600W HID sources with a versatile, high-output LED solution designed for parking, pole, and high-mast applications. The Satco S23137 delivers selectable wattage and color temperature options to optimize illumination, reduce maintenance, and improve energy efficiency across outdoor and large-area sites.
KEY FEATURES:
- Field-Selectable Output: Three true wattage settings (270W / 200W / 135W) let you tailor brightness and energy use for each installation.
- CCT Selectable: Choose Soft White, Cool White, or Daylight to match ambient color and application needs.
- Mogul EX39 Base: EX39 (Mogul) base enables fast retrofit into existing mogul sockets.
- Wide Illumination: 280° beam angle provides broad, even coverage for area lighting.
- Rugged Outdoor Performance: IP54 rating with built-in 4 kV surge protection and suitability for damp locations.
- Durable Construction: Aluminum housing with polycarbonate lens for long-term outdoor exposure.
- Long Life & Support: Rated 50,000 hours with a 5-year warranty.
APPLICATIONS:
- Ideal for parking lots, pole-mounted area lighting, and street/industrial perimeter illumination.
- Well suited for high-mast and site-security installations requiring reliable, high-output LED performance.
- Perfect for retrofit projects replacing 600W HID lamps to cut maintenance and energy costs.
- Installation Tip: Observe minimum compartment size and do not use in vapor-tight fixtures; follow mogul socket retrofit guidelines.
SPECIFICATIONS:
- Wattage: 270W / 200W / 135W (field selectable)
- Lumens: 45,869 / 35,334 / 24,442
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80+
- Beam Angle: 280°
- Voltage: 277V-480V
- Base Type: EX39 (Mogul Extended)
- Lamp Type: Corncob LED
- Power Factor: 0.97
- Dimmable: Yes (step dimming via wattage selection)
- Rated Life: 50,000 hours
- Operating Temp: -40°C (-40°F) to +50°C (+122°F)
- IP Rating: IP54
- HID Equivalent: 600W
- Material: Aluminum / Polycarbonate (PC)
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus - Classified, cULus - Listed
- DLC: Approved
- FCC Compliant: True
- RoHS Compliant: Yes
- Location Rating: Indoor and Outdoor; Damp Location Suitable
- Installation Notes: Not for use in vapor-tight fixtures; observe minimum compartment size.
