Description
High-Output LED 1000W HID Replacement For Outdoor And Indoor Fixtures | Soft White • Cool White • Daylight Options | IP54

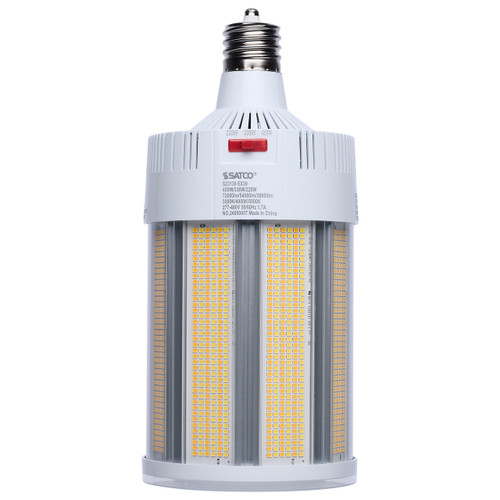

Designed to replace legacy 1000W HID sources, this Satco S23139 corncob lamp delivers high lumen output with on-lamp selectable wattage and color temperature to simplify stocking and field adjustments for parking, high-mast, and industrial lighting upgrades.
KEY FEATURES:
- Field-Selectable CCT: Switch between Soft White, Cool White, and Daylight to match site requirements.
- Selectable Wattage: True wattage selectable 450W, 338W, or 225W for flexible lumen output and energy savings.
- High Lumen Output: Replaces 1000W HID with up to 73,158 lumens at the highest setting.
- Durable Construction: Aluminum and polycarbonate materials with IP54 rating for indoor and outdoor damp locations.
- Universal Voltage & Protection: Operates on 277–480V with built-in 4kV surge protection and 0.97 power factor.
- Mogul EX39 Base: Mogul extended base for straightforward retrofit into existing HID sockets.
- Long Life & Warranty: Rated for 50,000 hours with a 5-year warranty.
- Dimming & Ballast Modes: AB/Type B ballast modes supported; step dimming via wattage selection switch.
APPLICATIONS:
- Ideal for parking lots and site lighting upgrades.
- Well suited for high-mast and sports facility illumination.
- Great for industrial yards and large outdoor commercial areas.
- Usage Tip: Install in compatible mogul (EX39) sockets; not for use in vapor-tight fixtures.
SPECIFICATIONS:
- Wattage: 450W / 338W / 225W (selectable)
- Lumens: 73,158 / 57,366 / 40,513
- Beam Angle: 280°
- Color Temperature: 3000K / 4000K / 5000K (Soft White • Cool White • Daylight)
- CRI: 80+
- Voltage: 277V-480V
- Power Factor: 0.97
- Total Harmonic Distortion: <20%
- Dimming Type: Step Dimming (via wattage switch)
- Base Type: EX39 Mogul Extended
- Material: Aluminum / Polycarbonate (PC)
- Rated Life: 50,000 hours
- IP Rating: IP54
- Location Rating: Damp
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus - Classified, cULus - Listed
- DLC: Approved
- California: Lawful for sale in California; Base Not Regulated (CA Regulations Exempt)
- Warranty: 5-Years
- Installation Notes: Not for use in vapor-tight fixtures. Rated For Enclosed Fixture: True.
