Description

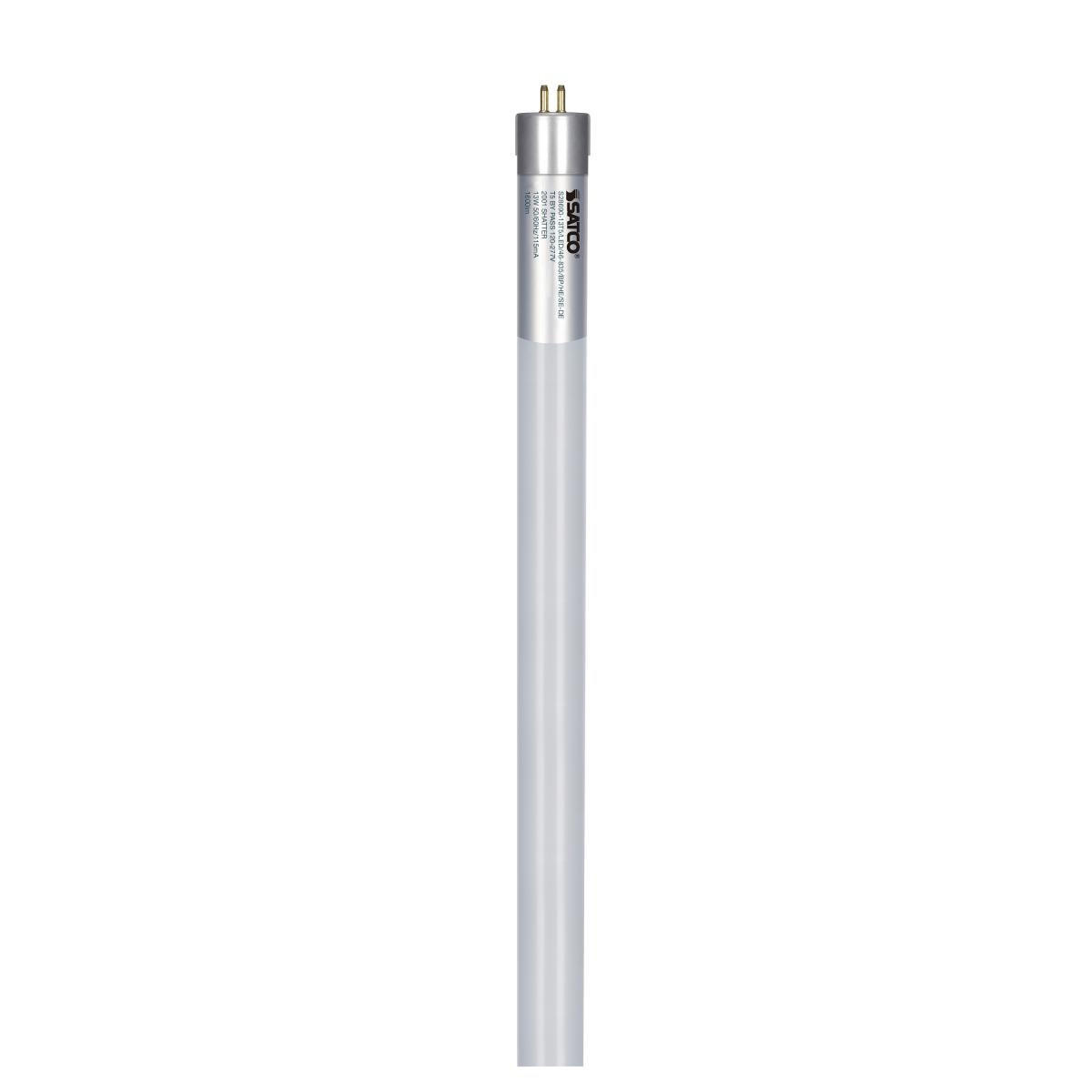

13T5/LED/46-835/BP/HE/SE-DE High-Efficiency T5 LED Tube | Cool White | Type B Bypass | SE/DE Wiring
Streamline your T5 upgrades with a direct-wire LED that eliminates ballast maintenance and delivers clean, consistent light. This 13W tube operates on 120–277V input, supports single- or double-ended wiring, and is PET-coated for added shatter resistance—ideal for busy commercial environments. Rated for enclosed fixtures and damp locations, it reduces service calls with a 50,000-hour lifespan and qualifies for rebates with DLC approval.
KEY FEATURES:
- Quick Retrofit: Type B ballast bypass design speeds installation and cuts ongoing ballast failures.
- Wiring Flexibility: SE/DE compatibility fits a wider range of existing tombstone setups.
- Durable & Safe: PET-coated glass provides shatter resistance for safer work areas.
- Comfortable Light: Frosted lens delivers wide 240° distribution with reduced glare.
- Tough Environments: Enclosed-fixture rated and suitable for damp locations.
- Cost-Saving: 50,000-hour life lowers maintenance; DLC approved for rebate programs.
- Hygiene Ready: NSF approved for sanitation-sensitive spaces.
APPLICATIONS:
- Offices and commercial corridors
- Retail aisles and back-of-house areas
- Healthcare and laboratory support spaces
- Tip: Use direct-wire sockets; supports single- or double-ended lampholders.
SPECIFICATIONS:
- Wattage: 13W
- Lumens: 1600
- CCT: 3500K
- CRI: 83
- Beam Spread: 240°
- Voltage: 120V–277V
- Ballast Type: Type B
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -25C (-13F) to +45C (+113F)
- Shape: T5 Linear
- Base: Miniature Bi Pin (G5)
- Nominal Length: 48
- MOL: 46
- MOD: 0.83
- Material: Glass
- Lens Finish: Frost
- Lens Material: Glass
- Housing Color: White
- Weight: 0.4 lb.
- Shatter-Proof Type: PET Coated
- Rated For Enclosed Fixture: Yes
- Location Rating: Damp
- DLC Approved: Yes
- DLC ID: PLYHW51UWNHJ
- Safety Listing: cULus Classified; cULus Certified; ETLus Sanitation Recognized Component
- NSF Approved: Yes
- Lifespan: 50,000 hours
- Warranty: 5 Year Limited
