Description

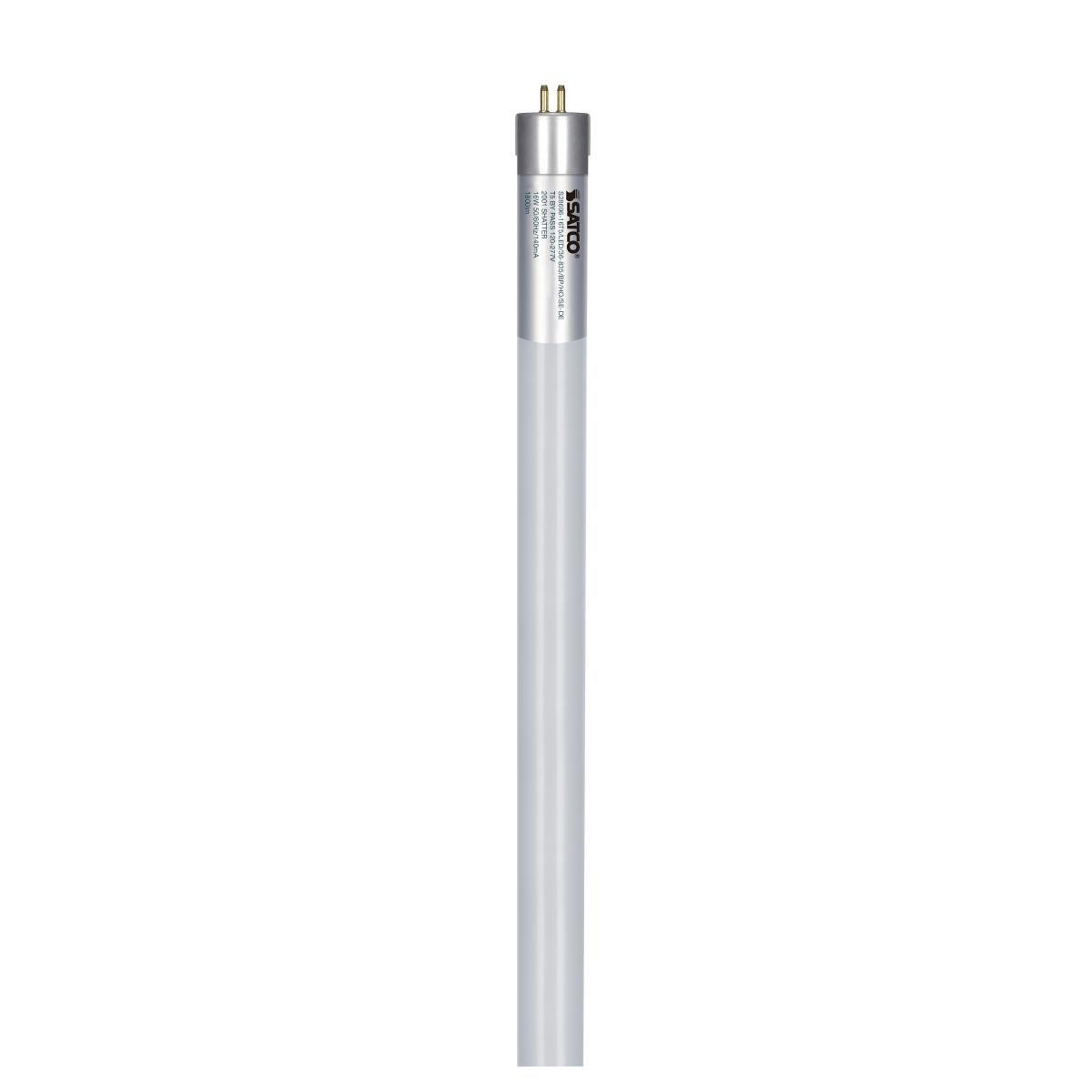

16T5/LED/36-840/BP/HO/SE-DE 36-Inch T5 LED Replacement Tube | Cool White | Type B Ballast Bypass | High Output Versatility
Streamline fluorescent changeouts with this 36-inch Type B T5 LED. It operates on direct line voltage (120–277V) after ballast bypass, delivers uniform Cool White light with a wide 240° beam, and reduces maintenance thanks to a 50,000-hour life. PET-coated, frosted glass construction adds safety and durability, and it is rated for use in enclosed fixtures.
KEY FEATURES:
- Fast Retrofit: Direct-wire Type B design eliminates fluorescent ballasts for fewer failure points.
- Uniform Illumination: Frosted glass and 240° beam minimize glare and hot spots.
- Durable & Safe: PET-coated, shatter-resistant glass and enclosed-fixture rating support demanding installs.
- Commercial Ready: 120–277V input and Cool White output suit a wide range of spaces.
- Lower Maintenance: 50,000-hour lifespan cuts relamping frequency and service calls.
APPLICATIONS:
- Offices, classrooms, and educational facilities.
- Retail aisles, stockrooms, and back-of-house areas.
- Warehouses, utility corridors, and commercial strips.
- Usage Tip: Disconnect/remove ballasts and follow wiring diagrams for safe Type B installation.
SPECIFICATIONS:
- Wattage: 16W
- Lumens: 1850
- Color Temperature: 4000K
- CRI: 83
- Voltage: 120V–277V
- Ballast Type: Type B (Ballast Bypass)
- Lamp Type: Linear
- Technology: LED
- Shape: T5
- Base: G5 (Miniature Bi Pin)
- Nominal Length: 36"
- MOL: 34"
- Beam Spread: 240
- Dimmable: No
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -25C (-13F) to +45C (+113F)
- Material: Glass
- Lens Finish: Frost
- Shatter-Proof Type: PET Coated
- Housing Color: White
- Enclosed Fixture Rated: Yes
- Location Rating: Damp
- Hours Rated: 50,000
- Incandescent Equivalent: 100W
- Fluorescent Equivalent: 39W
- Weight: 0.3 lb
- Warranty: 5 Year Limited
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Classified; cULus Certified; ETLus Sanitation Recognized Component
- Compliances: RoHS Compliant; FCC Compliant; NSF Approved
- California Status: Lawful for sale; Title 20/24 Lawful for sale
- Energy Star: No; DLC Approved: No
