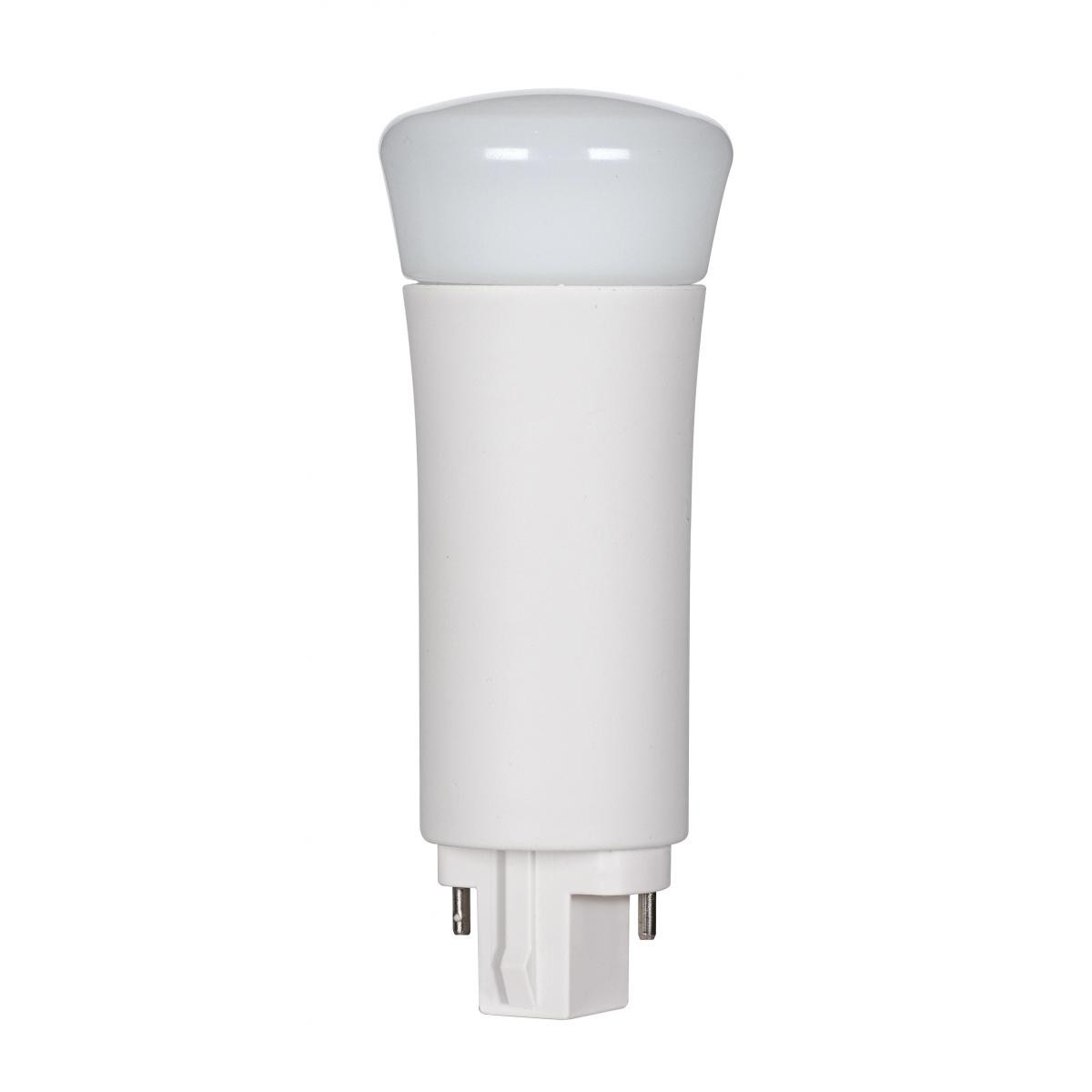

Satco S8537 - 9W LED PL Lamp - 3500K - Type B Ballast Bypass

9WPLV/LED/835/BP/2P Compact LED PL Replacement | Type B Direct Wire Retrofit | G24d 2-Pin Base for Vertical Installations

Upgrade aging CFL plug-in lamps with a reliable, low-maintenance LED alternative. This Type B, direct-wire PL lamp eliminates ballast failures and flicker, delivers comfortable neutral light, and installs quickly in both 2-pin and 4-pin sockets after bypassing the ballast.

KEY FEATURES:

• Direct-Wire Upgrade: Type B ballast bypass for fewer maintenance calls and dependable performance.
• Socket Flexibility: Works in G24d (2-pin) and G24q (4-pin) sockets after ballast removal.
• Comfortable Output: Neutral 3500K illumination supports productive, glare-free environments.
• Wide-Range Input: Operates on 120–277V for versatility across commercial sites.
• Long Service Life: 50,000 hours reduces relamping cycles and downtime.
• Consistent Light: Non-dimmable design ensures stable lumen output.

APPLICATIONS:

• Offices, hallways, and corridors.
• Healthcare clinics and patient areas.
• Educational facilities and common spaces.
• Tip: Bypass or remove existing ballast and wire line voltage directly to the socket per instructions.

SPECIFICATIONS:

• Wattage: 9W
• Lumens: 950
• Color Temperature: 3500K
• CRI: 82
• Beam Spread: 120
• Voltage: 120–277V
• Ballasting Requirements: Ballast Bypass — Direct Wire Only
• Base: G24d (2-Pin)
• Shape: PL
• Finish: Frost
• Lamp Orientation: Vertical Operation
• Operating Frequency: 50/60 Hz
• Operating Temperature: -20C (-4F) to +45C (+113F)
• MOL: 4.69
• MOD: 1.91
• Dimmable: No
• Hours Rated: 50,000
• Safety Listing: cULus Classified
• Location Rating: Damp
• California Status: Lawful for sale
• RoHS Compliant: Yes
• Warranty: 5 Year Limited (10 hr/day)
• CFL Replacement: In G24d (2-pin) sockets replaces 18W and 26W CFLs; in G24q (4-pin) sockets replaces 13W, 18W, and 26W CFLs
