Description

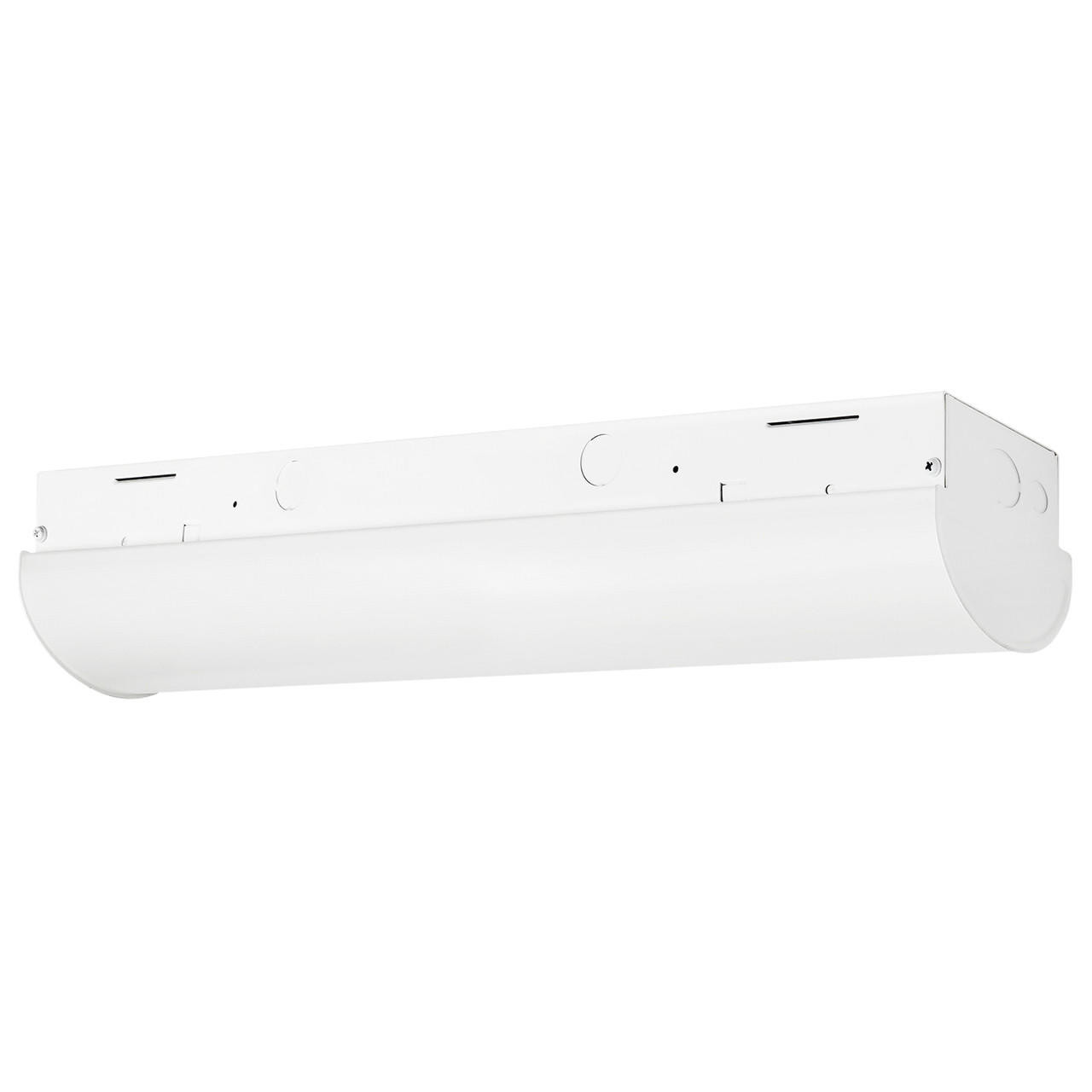

LFX/EC/2'/20W/MV/D/40K Low-Profile 2' Surface Mount LED Linear Fixture | Cool White (4000 K) For Offices, Schools, And Retail
Engineered for straightforward surface-mount upgrades, this 2-foot LED linear delivers consistent cool-white illumination while reducing maintenance and energy costs compared to legacy fluorescent fixtures. Its slim steel housing and PMMA lens provide uniform light distribution ideal for commercial and institutional spaces.
KEY FEATURES:
- Easy Upgrade: Slim 2' surface-mount design installs quickly to replace fluorescent strips with minimal labor.
- Energy Efficient: 20W consumption produces 2,620 lumens for high efficacy in general lighting applications.
- Smooth Dimming: 0-10V dimmable driver enables smooth, flicker-free light level control.
- Durable Construction: Steel housing with PMMA lens resists yellowing and maintains optical clarity.
- Long Life: 50,000-hour rated lifespan lowers replacement frequency and maintenance costs.
APPLICATIONS:
- Ideal for office open-plan areas, corridors, and break rooms.
- Great for retail aisles and display lighting where uniform cool-white light is needed.
- Well-suited to educational facilities and classrooms requiring low-maintenance fixtures.
- Installation Tip: Pair with 0-10V controls for zoning and daylight dimming to maximize energy savings.
SPECIFICATIONS:
- Wattage: 20W
- Lumens: 2,620
- Color Temperature: 4000K
- CRI: 82
- Beam Spread: 110°
- Lifespan: 50,000 hours
- Input Voltage: 120-277V
- Dimming: 0-10V Dimmable
- Fixture Material: Steel
- Lens Material: PMMA
- Mounting: Surface Mount, 2-Foot
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed - Damp Location
- Qualification: DLC (PL2A4LUIQTCU)
- Warranty: 5 Years
- Operating Temperature: -20° - 50°
