Description

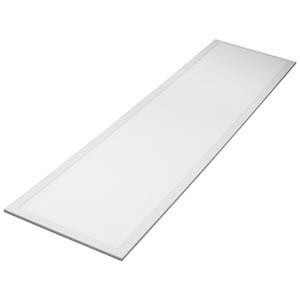

DTF1UZD2330KEB Slim 1x4 LED Troffer Fixture | Warm White 3000K Illumination | Ideal for Offices, Schools, and Commercial Ceilings
The TCP DTF1UZD2330KEB LED Direct Troffer provides an efficient, modern solution for upgrading outdated fluorescent troffers. Featuring back-lit technology, this fixture delivers uniform warm white light with reduced glare and a slim, lightweight profile that installs easily into standard T-bar grid ceilings. It’s an excellent choice for cutting energy costs and minimizing maintenance while improving overall light quality in commercial spaces.
KEY FEATURES:
- Energy Savings: Uses just 23W to deliver 2600 lumens, reducing costs compared to traditional T8 or T12 systems.
- Superior Light Quality: High CRI and warm 3000K color temperature enhance comfort and visual appeal.
- Reliable Performance: Rated for 50,000 hours of operation, minimizing replacement cycles.
- Versatile Installation: Slim, low-profile design fits standard 1" and 9/16" T-bar grid ceilings.
- Dimmable Control: Standard 0-10V dimming supports adaptive lighting strategies.
APPLICATIONS:
- Perfect for offices requiring consistent, comfortable illumination.
- Well-suited for classrooms and educational facilities upgrading from fluorescents.
- Recommended for retail and hospitality spaces needing warm, inviting light.
SPECIFICATIONS:
- Wattage: 23W
- Lumens: 2600
- Efficacy: >110 LPW
- Color Temperature: 3000K
- CRI: >80
- Voltage: 120–277V
- Shape: 1'x4' Direct Troffer
- Lifespan: 50,000 hours
- Dimmable: 0–10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, IC Rated
- Location Rating: Damp Location
- Compliance: RoHS Compliant, DLC 5.0
- Warranty: 5-year limited warranty
