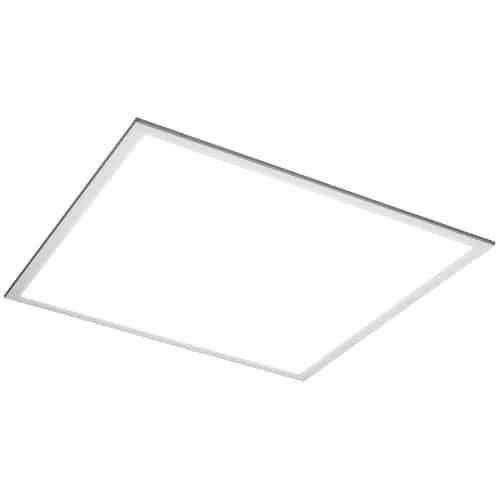

DTF2UZD3841KEB 2x2 LED Back-Lit Troffer Fixture | Neutral White 4100K Illumination | Wattage Selectable Design for Offices and Schools
The TCP DTF2UZD3841KEB LED Direct Troffer is engineered to deliver long-lasting efficiency while replacing outdated fluorescent systems. With advanced back-lit technology, this troffer ensures even light distribution, reduced glare, and dependable operation for a wide range of commercial ceiling applications.
KEY FEATURES:
- Flexible Performance: Wattage selectable between 38W, 29W, and 23W to optimize energy savings.
- Comfortable Lighting: Frosted diffuser minimizes glare and creates uniform illumination across spaces.
- Low Maintenance: Rated for 50,000 hours, reducing replacement frequency and associated labor costs.
- Energy Efficient: Consumes less energy than traditional T5, T8, or T12 systems while delivering high lumen output.
- Smart Controls Ready: Compatible with optional SmartBox sensor integration for occupancy-based savings.
APPLICATIONS:
- Ideal for offices, classrooms, and retail ceiling grids.
- Perfect for healthcare or hospitality facilities needing reliable, uniform lighting.
- Best used in T-bar grid installations where long life and low maintenance are priorities.
SPECIFICATIONS:
- Wattage: 23W / 29W / 38W (Selectable)
- Lumens: 2600 / 3200 / 4200
- Efficacy: >110 LPW
- Color Temperature: 4100K
- CRI: >80
- Voltage: 120-277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0-10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, RoHS Compliant
- Location Rating: Damp Location, IC Rated
- Warranty: 5-year limited warranty
