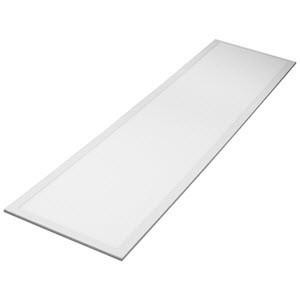

DTF1UZD2350K LED Back-Lit Troffer Fixture | Bright 5000K Daylight | Slim 1x4 Panel for Offices, Healthcare, and Retail Ceilings
The TCP DTF1UZD2350K delivers a modern alternative to outdated fluorescent troffers with high efficiency, low maintenance, and superior uniformity. Designed with slim back-lit technology, this 1x4 panel provides crisp daylight illumination while reducing energy costs and enhancing occupant comfort in professional environments.
KEY FEATURES:
- Energy Savings: Replaces traditional T8 or T5 fluorescent systems while cutting energy consumption significantly.
- Uniform Lighting: Back-lit diffuser ensures consistent brightness across the full panel with reduced glare.
- Low Maintenance: 50,000-hour rated life minimizes replacement cycles and service costs.
- Reliable Dimming: Standard 0-10V dimming driver offers smooth lighting control for different settings.
- Durable Build: IC rated and UL/cUL damp-location listed for safe use in a wide range of ceiling installations.
APPLICATIONS:
- Ideal for office drop ceilings requiring bright, even illumination.
- Excellent choice for healthcare environments where clean, uniform light enhances comfort.
- Well-suited for retail and hospitality ceilings that demand long-lasting energy savings.
SPECIFICATIONS:
- Wattage: 29W
- Lumens: 3,200
- Efficacy: >110 LPW
- Color Temperature: 5000K
- CRI: >80
- Voltage: 120–277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0–10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, DLC 5.0 Standard
- Location Rating: Damp Location, IC Rated
- Warranty: 5-year limited warranty
