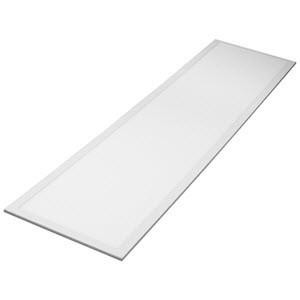

DTF1UZD2935K Back-Lit 1x4 LED Troffer Fixture | Neutral White 3500K Illumination | Slim Low-Profile Design for Offices, Schools, Retail
The TCP DTF1UZD2935K delivers an energy-saving solution to replace outdated fluorescent troffers with a modern, efficient LED system. Featuring a slim, back-lit design and frosted diffuser, this luminaire ensures even light distribution, reduced glare, and consistent performance in professional and commercial spaces.
KEY FEATURES:
- Uniform Lighting: Back-lit panel provides full diffusion with superior uniformity across the workspace.
- Energy Savings: Reduces energy consumption compared to T5, T8, and T12 fluorescent alternatives.
- Long Lifespan: Rated for 50,000 hours, cutting down replacement and maintenance costs.
- Comfortable Illumination: Neutral white 3500K color temperature creates an inviting environment.
- Dimmable Control: Equipped with standard 0-10V dimming for adjustable brightness levels.
APPLICATIONS:
- Perfect for offices seeking efficient and consistent lighting solutions.
- Excellent for classrooms and schools where uniform, glare-free lighting is critical.
- Suited for retail locations to enhance product visibility and customer comfort.
SPECIFICATIONS:
- Wattage: 29W
- Lumens: 3200
- Efficacy: >110 LPW
- Color Temperature: 3500K
- CRI: >80
- Voltage: 120-277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0-10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, RoHS Compliant
- Location Rating: Damp Location, IC Rated
- Warranty: 5-year limited warranty
