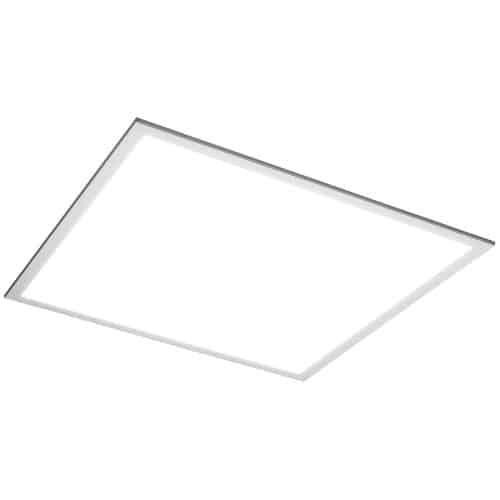

DTF2UZD38CCT Versatile 2x2 LED Backlit Troffer | CCT Selectable 3500K-5000K | Slim Low-Profile Fixture for Offices, Schools, and Retail
Designed as a high-efficiency replacement for traditional T5, T8, and T12 fluorescent troffers, the TCP DTF2UZD38CCT delivers exceptional energy savings while enhancing light quality. Its slim, backlit design provides full panel diffusion and uniform illumination, reducing glare and improving comfort in professional and educational spaces.
KEY FEATURES:
- Energy Savings: Cuts energy use compared to fluorescent systems, helping reduce operating costs.
- Long Performance: Rated for 50,000 hours, minimizing maintenance interruptions.
- Uniform Illumination: Backlit technology ensures consistent light distribution across the panel.
- Flexible CCT Options: Selectable 3500K, 4100K, or 5000K color temperatures for tailored environments.
- Dimming Control: Standard 0-10V dimming provides customizable light levels.
APPLICATIONS:
- Perfect for office ceilings where balanced, professional lighting is essential.
- Ideal for schools seeking uniform illumination in classrooms and hallways.
- Suitable for retail and healthcare spaces requiring energy efficiency and visual comfort.
SPECIFICATIONS:
- Wattage: 23W / 29W / 38W Selectable
- Lumens: 2600 / 3200 / 4200
- Efficacy: >110 LPW
- Color Temperature: 3500K / 4100K / 5000K Selectable
- CRI: >80
- Voltage: 120–277V
- Lifespan: 50,000 hours
- Dimmable: 0-10V
- Beam Angle: 120°
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Location Rating: Damp location rated, IC rated, IP20
- Compliance: DLC 5.1 Standard, RoHS Compliant
- Warranty: 5-year limited warranty
