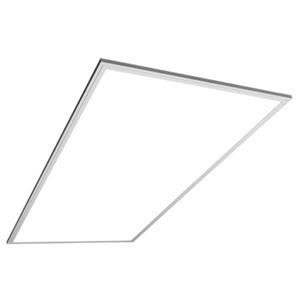

DTF4UZD2935K 2x4 LED Back-Lit Troffer Fixture | Neutral White 3500K Illumination | Slim Low-Profile Panel for Offices, Retail, and Healthcare
Upgrade from outdated fluorescent troffers with the TCP DTF4UZD2935K LED Direct Troffer. Its back-lit design ensures even light distribution with reduced glare, while delivering dependable illumination for commercial and institutional spaces. The slim profile simplifies installation in standard T-bar grid ceilings and provides long-lasting performance that reduces maintenance and operating costs.
KEY FEATURES:
- Energy Saving: Consumes just 29W while producing 3,300–4,400 lumens for efficient performance.
- Uniform Lighting: Back-lit technology with frosted diffuser ensures smooth, glare-free light output.
- Long Service Life: Rated for 50,000 hours, minimizing replacement and maintenance needs.
- Flexible Mounting: Designed to fit standard 1" and 9/16" T-bar grid ceilings for fast installation.
- Dimmable: Standard 0-10V dimming provides customizable light levels.
APPLICATIONS:
- Perfect for offices, classrooms, and healthcare facilities requiring consistent overhead lighting.
- Excellent fit for retail environments where neutral white enhances product visibility.
- Best used in T-bar grid ceilings for fast, low-profile installation.
SPECIFICATIONS:
- Wattage: 29W
- Lumens: 3,300–4,400
- Efficacy: >110 LPW
- Color Temperature: 3500K
- CRI: >80
- Voltage: 120–277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0–10V
- Shape: 2' x 4' Recessed Troffer
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Location Rating: Damp location, IC rated
- Compliance: RoHS Compliant, DLC 5.0 Standard
- Warranty: 5-year limited warranty
