Clear 100W Metal Halide Retrofit Lamp | 4000 Lumens | 120-277V | E26 Base with E39 Adapter | Cool White

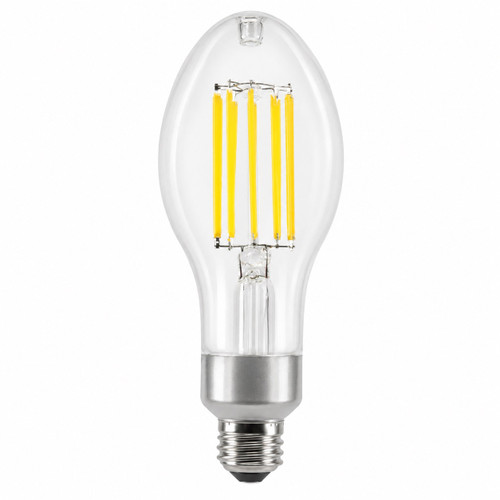

TCP FED23N10040E26CL is a 24W ED23 LED filament HID replacement lamp designed to replace 100W metal halide lamps in compatible high bay, low bay, wall pack, bollard, parking structure, warehouse, and exterior lighting applications. This clear retrofit lamp operates on 120-277V after ballast bypass, delivers 4000 lumens, produces 4000K cool white light, uses an E26 medium base, includes an E39 adapter, and supports enclosed fixtures, wet locations, and universal burn position installations.
Product Specifications
- Brand: TCP
- Model Number: FED23N10040E26CL
- Product Type: LED filament HID replacement lamp
- Lamp Shape: ED23
- Lamp Finish: Clear
- Wattage: 24W
- HID Replacement: 100W metal halide
- Voltage: 120-277V
- Installation Type: Ballast bypass
- Base Type: E26 medium base
- Adapter Included: E39 adapter
- Lumen Output: 4000 lumens
- Efficacy: 166.7 lumens per watt
- Color Temperature: 4000K
- Descriptive Color: Cool White
- CRI: 80
- Beam Angle: 360 degree
- Burn Position: Universal burn position
- Enclosed Fixture Rated: Yes
- Location Rating: Wet location rated
- Rated Life: 50,000 hours
- Minimum Starting Temperature: -40C / -40F
- Maximum Operating Temperature: 65C / 149F
- Power Factor: Greater than 0.9
- Maximum Overall Length: 7.6 inches
- Diameter: 3.00 inches
- Weight: 0.35 lb
- Case Quantity: 12
- Compliance: RoHS compliant
- Warranty: 5 years
Benefits
- Replaces 100W metal halide HID lamps while using only 24W.
- Clear ED23 filament shape fits many existing HID-style fixtures.
- Ballast bypass design eliminates the existing ballast from the circuit.
- 120-277V input supports common commercial and industrial voltages.
- E26 base with included E39 adapter gives the lamp broader socket compatibility.
- 4000 lumens provides strong light output for compact HID retrofit applications.
- 4000K cool white light is well suited for commercial, industrial, and exterior visibility.
- 360 degree beam angle helps deliver broad omni-directional light distribution.
- Wet location and enclosed fixture ratings support a wide range of indoor and outdoor installations.
- 50,000 hour rated life helps reduce maintenance compared to traditional HID lamps.
Applications
- 100W metal halide replacement
- HID retrofit projects
- High bay fixtures
- Low bay fixtures
- Wall packs
- Bollards
- Parking structures
- Warehouses
- Industrial lighting
- Large retail facilities
- Gymnasiums
- Outdoor area lighting
