Description

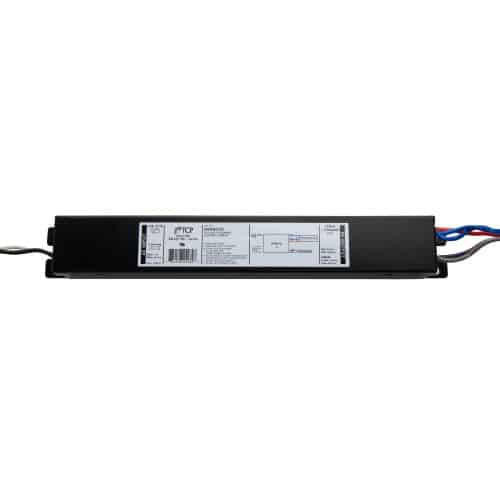

LDT5HE213C High Efficiency LED T5 Type C Driver | 2-Lamp 26W System | Compatible with 3500K, 4000K, 5000K Retrofit Tubes
The TCP LDT5HE213C driver is engineered to power high efficiency LED T5 Type C lamps, making it an ideal replacement for outdated fluorescent systems. Designed for 2-lamp 26W setups, this driver delivers reliable lumen output with superior efficacy and supports dimmable control for flexible lighting solutions. It helps reduce energy costs while ensuring long-lasting performance in commercial and institutional spaces.
KEY FEATURES:
- High Efficiency: Provides 26W system power with 3400–3600 lumen output.
- Dimmable Control: Supports 0–10V dimming for adaptable brightness levels.
- Cost-Saving Retrofit: Replaces inefficient fluorescent drivers with superior efficiency.
- Durable Design: Optimized for demanding commercial lighting environments.
- Extended Warranty: Protected with a 5-year limited warranty for peace of mind.
APPLICATIONS:
- Perfect for schools and offices retrofitting from fluorescent systems.
- Great for healthcare facilities requiring reliable and efficient lighting.
- Best for retail and institutional installations needing long-lasting performance.
SPECIFICATIONS:
- Item ID: LDT5HE213C
- Type: T5 Type C High Efficiency Driver
- System Wattage: 26W
- Lumens: 3400–3600 (with compatible lamps)
- Efficacy: 138 LPW
- CRI: 82
- Voltage: 120–277V
- Operating Temperature: -20°C to 45°C (-4°F to 113°F)
- Lifespan: 50,000 hours
- Dimmable: 0–10V
- Dimensions: 1.3" x 9.5" x 1.1"
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL, ETL, RoHS Compliant
- Energy Certification: DLC Qualified (with compatible lamps)
- Location Rating: Suitable for damp and dry locations
- Warranty: 5-year limited warranty
