Description

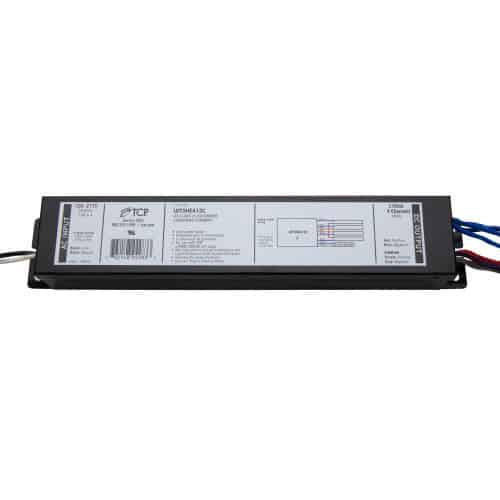

LDT5HE413C High Efficiency LED T5 Type C Driver | 4-Lamp 52W System | Compatible with 3500K, 4000K, 5000K Retrofit Tubes
The TCP LDT5HE413C driver powers high efficiency LED T5 Type C lamps, designed to replace outdated fluorescent ballasts in commercial and institutional settings. With support for up to 4 lamps at 52W total system wattage, this driver ensures reliable output, smooth dimming performance, and significant energy savings while maintaining high lumen efficacy. Built for long-lasting performance, it simplifies retrofits and helps lower ongoing maintenance costs.
KEY FEATURES:
- Powerful Design: Drives up to 4 T5 HE LED lamps with 52W system power.
- High Efficiency: Achieves 6800–7200 lumens with 138 LPW efficacy.
- Dimming Control: 0–10V dimmable for flexible lighting levels.
- Reliable Operation: Optimized for long-term commercial and institutional applications.
- Peace of Mind: Backed by a 5-year limited warranty.
APPLICATIONS:
- Perfect for offices, schools, and healthcare facilities upgrading from fluorescent systems.
- Well-suited for retail and institutional settings needing efficient and long-lasting lighting.
- Best used in retrofit projects requiring compatibility with 3500K, 4000K, or 5000K LED T5 tubes.
SPECIFICATIONS:
- Item ID: LDT5HE413C
- Type: T5 Type C High Efficiency Driver
- System Wattage: 52W
- Lumens: 6800–7200 (with compatible lamps)
- Efficacy: 138 LPW
- CRI: 82
- Voltage: 120–277V
- Operating Temperature: -20°C to 45°C (-4°F to 113°F)
- Lifespan: 50,000 hours
- Dimmable: 0–10V
- Dimensions: 1.8" x 9.5" x 1.3"
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL, ETL, RoHS Compliant
- Energy Certification: DLC Qualified (with compatible lamps)
- Location Rating: Suitable for damp and dry locations
- Warranty: 5-year limited warranty
