Description

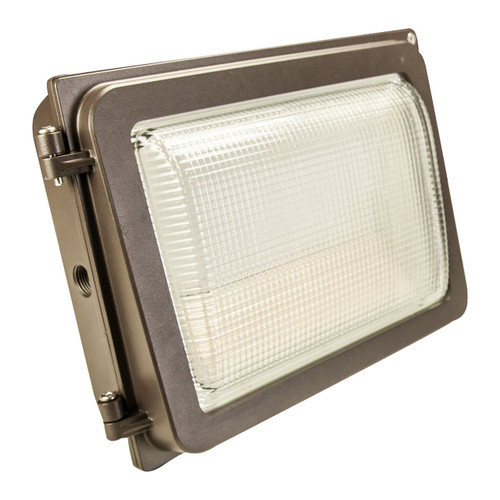

Low-Profile LED Wall Pack For Outdoor Security And Perimeter Lighting | CCT Selectable | High-Efficacy Selectable Wattage For Simple Site Standardization
Deliver reliable, uniform exterior illumination with a compact fixture designed to simplify specification and installation. The TCP Select Series Slim Wall Pack combines selectable CCT and wattage with high efficacy to reduce energy use and maintenance across site perimeters, entrances and security zones.
KEY FEATURES:
- Selectable Color and Power: On-site CCT and wattage selection allows field tuning to match existing site lighting or standardize across projects.
- High Efficacy: Delivers over 130 LPW for reduced energy consumption and ongoing operating cost savings.
- Durable Outdoor Construction: Die-cast aluminum housing with impact-resistant glass lens for long-term reliability in exterior environments.
- Integrated Controls: Photocell standard with available 0-10V dimming for energy management and scheduling.
- Wet Location Ready: IP65 rating for dependable performance in exposed outdoor mounting locations.
APPLICATIONS:
- Building perimeters and entrances
- Security lighting and site pathways
- Loading docks, service doors, and commercial exteriors
- Tip: Use CCT selection to match adjacent fixtures during phased upgrades
SPECIFICATIONS:
- Form Factor: Select Series LED Slim Wall Pack
- Color: CCT Selectable (3000K / 4000K / 5000K)
- Wattage: Selectable (30/40/60W or 60/80/100W as applicable)
- Lumens: Selectable (4200 / 5600 / 7800 or 7800 / 11,200 / 13,000 as applicable)
- Voltage: 120-277V
- Rated Life: 50,000 hours
- CRI: >80
- Ratings: cULus wet location rated, IP65
- Controls: Photocell (standard); 0-10V dimming (ZD option)
- Options On This SKU: 120-277V (U); 0-10V Dimming (ZD); CCT Selectable; Selectable Wattage
Downloads
Disclaimers
*Typically ships within 2-3 business days. Lead times are estimates and may vary based on quantity and availability.
