Description

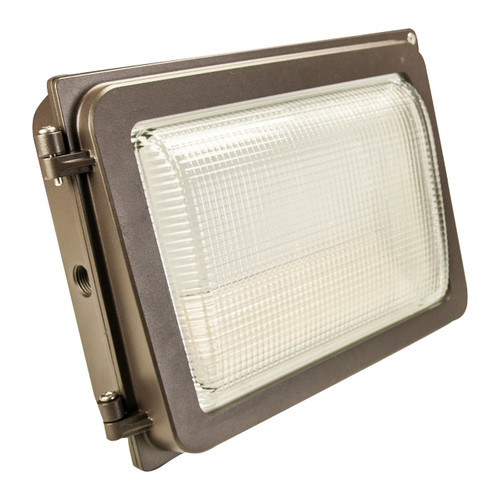

Slim LED Wall Pack For Perimeter And Entrance Lighting | CCT Selectable | IP65 Wet Rated For Energy-Efficient Security
Reduce maintenance and energy use with the TCP Select Series Slim Wall Pack. This compact exterior fixture delivers selectable CCT and wattage to match site conditions while providing IP65 wet-location durability and an integrated photocell for automated night-time control.
KEY FEATURES:
- On-Site Tuning: CCT and wattage selectable options let you tailor light output and color to the installation without replacing fixtures.
- Weatherproof Durability: Die-cast aluminum housing with impact-resistant glass and IP65 rating for reliable outdoor performance.
- Integrated Controls: Standard photocell simplifies dusk-to-dawn operation and maximizes energy savings.
- High Efficacy: Delivers over 130 LPW to reduce energy consumption across large perimeters and campuses.
- Contractor-Friendly: Compact slim profile and easy-access wiring compartment speed installations and retrofits.
APPLICATIONS:
- Perimeter and Site Lighting
- Entrances and Building Exteriors
- Security and Service Areas
- Tip: Use CCT selection to match adjacent fixtures during phased upgrades.
SPECIFICATIONS:
- Form Factor: Slim Wall Pack
- Color: CCT Selectable (3000K / 4000K / 5000K)
- Wattage: Selectable (60W / 80W / 100W)
- Lumens: Selectable (7,800 / 11,200 / 13,000 lm)
- Voltage: 120–277V
- Rated Life: 50,000 hours
- Ratings: IP65 Wet Location Rated; cULus Listed
- Controls: Photocell (standard)
- CRI: >80
- LPW: >130
- Height: 6.9
- Width: 13.2
- Options On This SKU: CCT Selectable; Wattage Selectable
